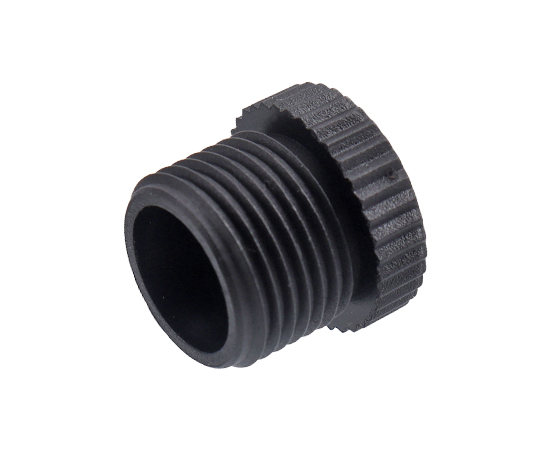

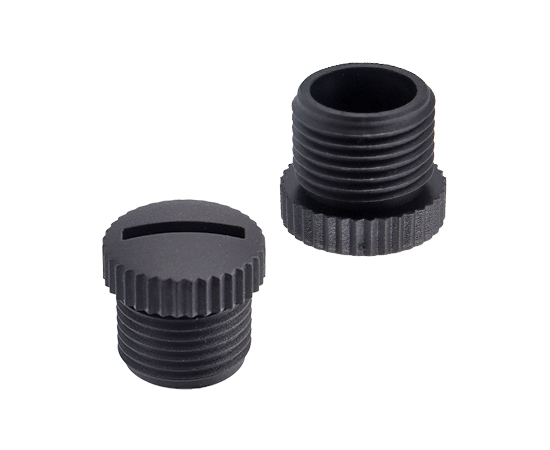

M12 A Word Slot Plastic Dust Cover( Outer screw)
TECHNICAL PARAMETER
| Shell material： | PA66 |
| Fire grade： | UL94-V0 |
| Ring inner diameter： | ∅M12 |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof： | IP67 |
| Executive standard： | IEC 61076-2-101 |
| Product name | Ring inner diameter | Model | 3D Download | 2D Download |
| M12 Plastic Dust Cover (Outer screw) | Φ M12 | M12P-TV6S | ↓ |
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |

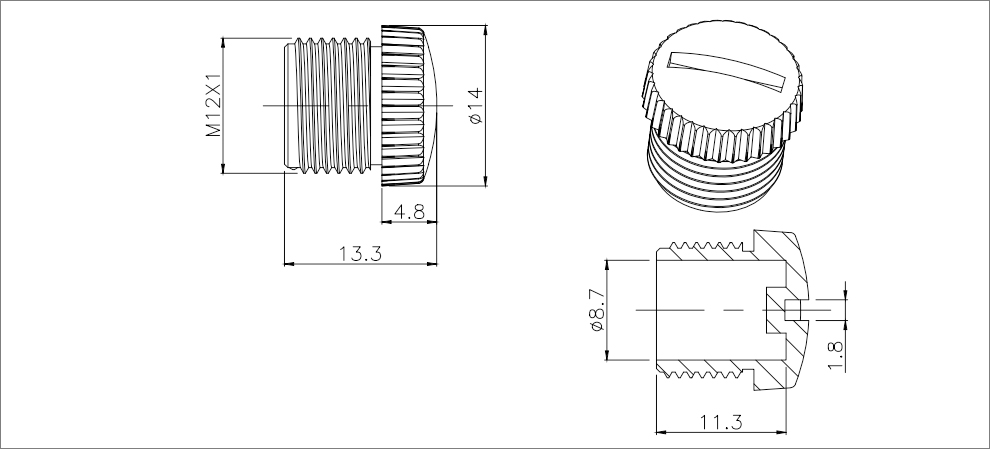

DIMENSION
