F Series Socket caps
TECHNICAL PARAMETER
| Coupling: | Push-pull self-locking |
| Operating temperature: | -45℃ ~ +125℃ |
| Maximum humidity: | Up to 95% at 60°C/140°F |
| Shielding performance: | >95dB(10MHz)；>80dB(1GHz) |
| Anti-vibration performance: | 15g[10~20000Hz] |
| Salt spray test: | ＞96h |
| Impact resistance: | 100g,6ms |
| Mechanical life: | ＞5000 Cycles |
| Protection level: | IP68 |
| Product Description | Series | Part Number | 3D Download | 2D Download |
| F Series-Socket Caps 0F | 0F | BRE.0F.200.NAS | ||
| F Series-Socket Caps 1F | 1F | BRE.1F.200.NAS | ||
| F Series-Socket Caps AF | AF | BRE.AF.200.NAS | ||
| F Series-Socket Caps 2F | 2F | BRE.2F.200.NAS |
| Product Catalog | STA-Push Pull Series Brochure |

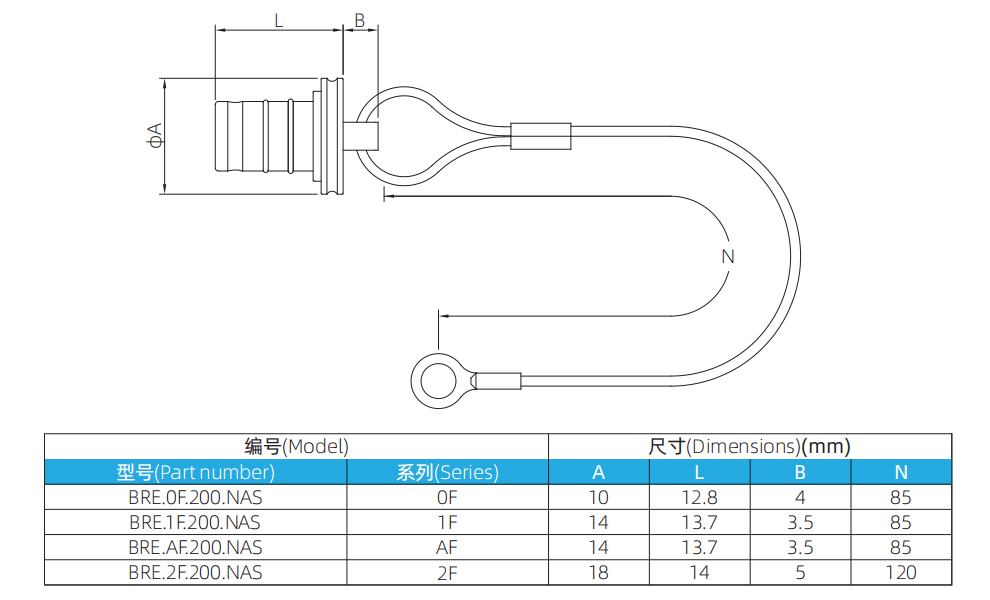

DIMENSION
