K Series Socket caps
TECHNICAL PARAMETER
| Durability: | >5000 Cycles |
| Humidity: | Up to 95% at 60°C/140°F |
| Operating temperature: | -55℃ ~ +200℃ |
| Anti-vibration performance: | 10-2000 Hz,15g |
| Impact resistance: | 100g,6ms |
| Salt spray corrosion test: | >1000 h |
| Protection level: | IP50 |
| Product Description | Series | Part Number | 3D Download | 2D Download |
| K Series-Socket Caps 0K | 0K | BRE.0K.200.NAS | ||
| K Series-Socket Caps 1K | 1K | BRE.1K.200.NAS | ||
| K Series-Socket Caps 2K | 2K | BRE.2K.200.NAS | ||
| K Series-Socket Caps 3K | 3K | BRE.3K.200.NAS |
| Product Catalog | STA-Push Pull Series Brochure |

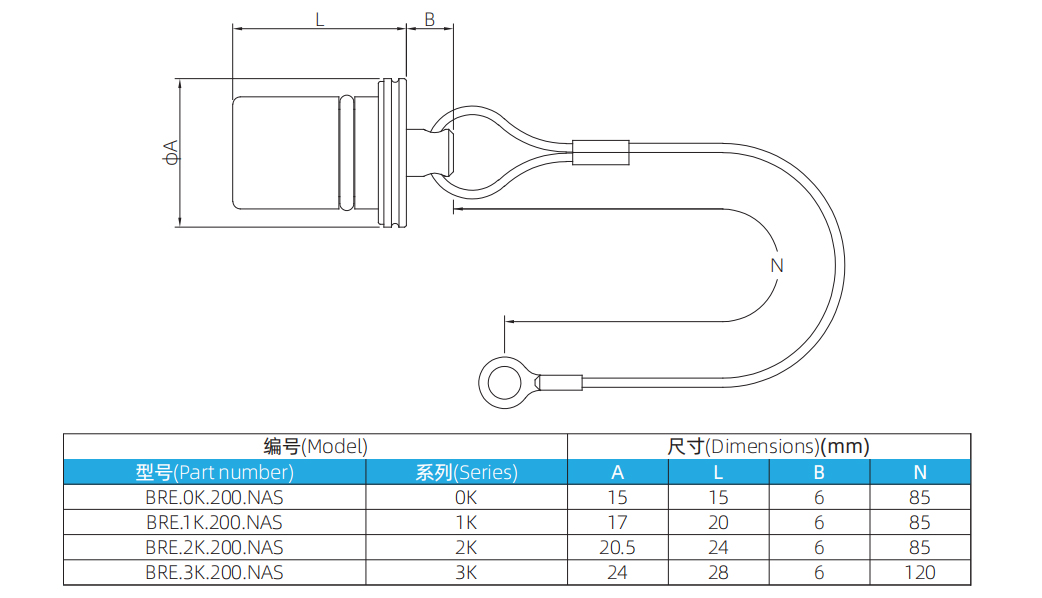

DIMENSION
