B~S Series Socket caps
TECHNICAL PARAMETER
| Durability: | >5000 Cycles |
| Humidity: | Up to 95% at 60°C/140°F |
| Operating temperature: | -55℃ ~ +200℃ |
| Anti-vibration performance: | 10-2000 Hz,15g |
| Impact resistance: | 100g,6ms |
| Salt spray corrosion test: | >1000 h |
| Protection level: | IP50 |
| Environmental test: | 55/175/21 |
| Shielding performance: | (10MHz)>95dB; (1GHz)>80dB |
| Product Description | Series | Part Number | 3D Download | 2D Download |
| Socket caps 00 | 00 | BRE.00.200.NAS | ||
| Socket caps 0S~0B | 0S~0B | BRE.0S.200.NAS | ||
| Socket caps 1S~1B | 1S~1B | BRE.1S.200.NAS | ||
| Socket caps 2S~2B | 2S~2B | BRE.2S.200.NAS | ||
| Socket caps 3B | 3B | BRE.3S.200.NAS |
| Product Catalog | CAZN-Push Pull Series Brochure |

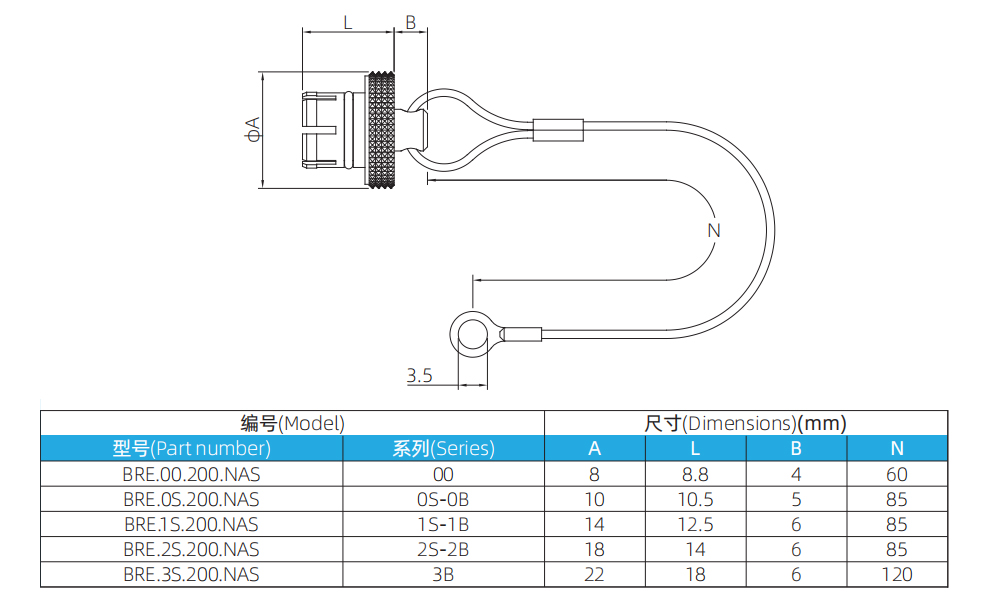

DIMENSION
