2052
BASICPARAMETERS
| Pitch: | 3mm |
| Rated voltage-UL: | 250V |
| Rated current-UL: | 3A |
| Rated voltage-IEC: | 160V |
| Rated current-IEC: | 3A |
| Wire range-UL: | 26-22AWG |
| Wire range-IEC: | 0.14-0.34mm² |
| Pole number: | 2P、3P |
| Insulation Material: | PPA GF UL94 V-0 |
| Contact material: | Copper alloy, tin plated |
| Wire stripping length: | 4~5.5mm / 0.16~0.22inches |
| Operating temperature: | -60℃ ~ +105℃ |
| Approval: |   |
◆SMD PCB terminal block, using plug-in spring wiring unit (PUSH WIRE)® Connection technology
◆Single strand wire can be directly inserted
◆With the help of operating tools, it is easy to complete the dismantling work
◆Only 2.7 mm high
◆Assemble without occupying poles
◆Roll up tape packaging, suitable for automatic assembly
| Product Name | Pitch | Pole number | Part No. | 3D Download | 2D Download |
| 2052 SMT terminals | 3mm | 2P | 2052-2P | ||
| 2052 SMT terminals | 3mm | 3P | 2052-3P |
| PRODUCT CATALOG | Terminal Selection Manual |

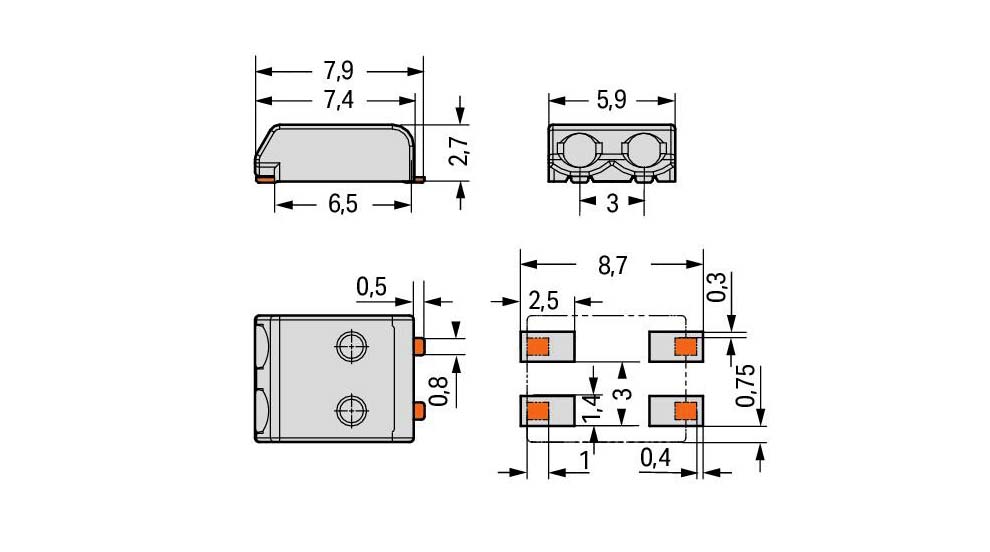

DIMENSION DRAWING
