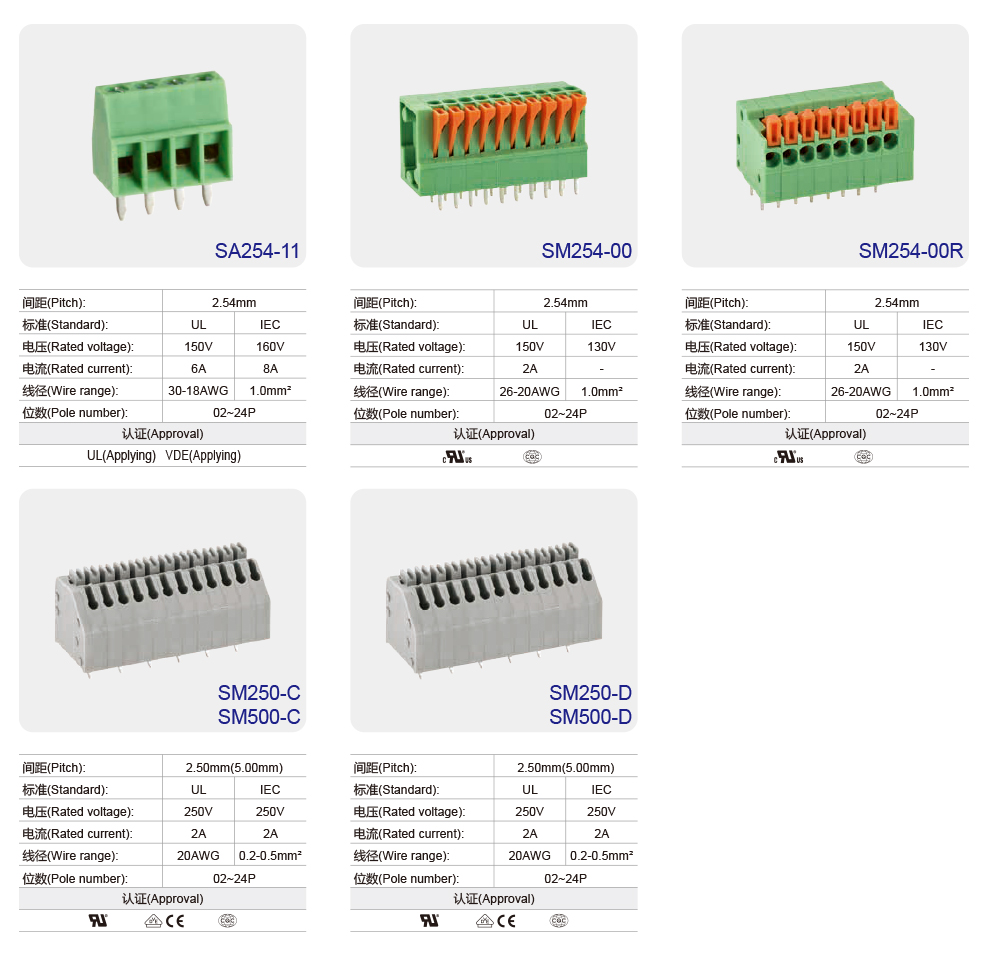

SA254-11
BASICPARAMETERS
| Pitch: | 2.54mm |
| Rated voltage-UL: | 150V |
| Rated current-UL: | 6A |
| Rated voltage-IEC: | 160V |
| Rated current-IEC: | 8A |
| Wire range-UL: | 30-18AWG |
| Wire range-IEC: | 1.0mm² |
| Pole number: | 02~24P |
| Approval: | UL(Applying)，VDE(Applying) |
| Product Name | Pitch | Pole number | Part No. | 3D Download | 2D Download |
| Fixed Terminal | 2.54mm | 02~24P | SA254-11 |
| PRODUCT CATALOG | Terminal Selection Manual |
