2025-10-15
Among them, the waterproof D-SUB connector stands out for its reliable sealing performance, standardized interface, and wide adaptability in fields such as communication systems, industrial automation, transportation, and outdoor control cabinets.
One of the key elements behind the performance of a D-SUB connector is its housing (shell). The housing not only determines the connector’s IP rating and mechanical strength, but also directly affects its environmental durability and service life.

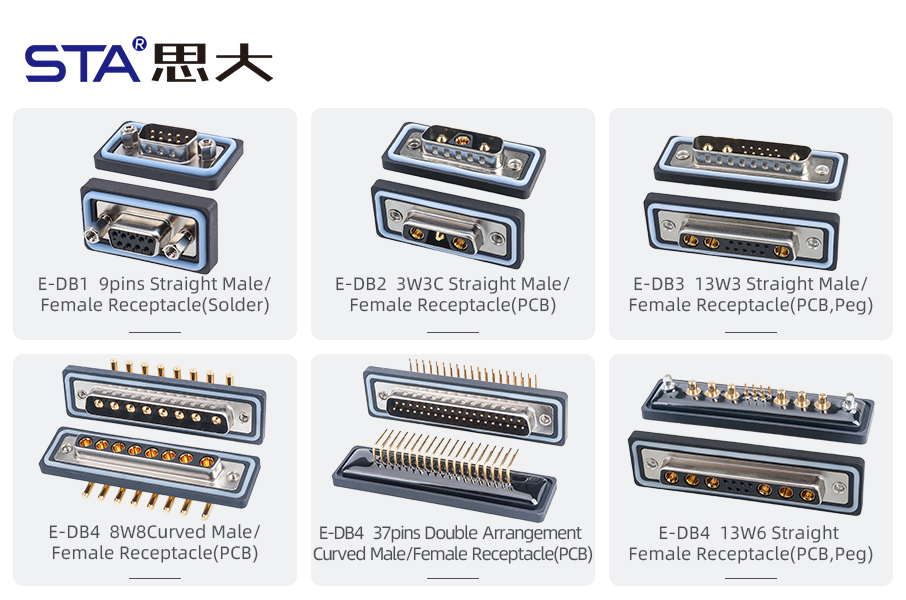

1. Types of Waterproof D-SUB Connector Housings
Currently, there are four main housing sizes for waterproof D-SUB connectors, each designed for different pin counts and application scenarios.
Type 1 Housing (E-DB9)
Commonly used for low pin-count interfaces (e.g., 9-pin)
Compact and easy to install
Typical Applications: Sensors, communication interfaces
Type 2 Housing (E-DB15)
Balanced between size and pin count (e.g., 15-pin)
Suitable for video signal and control signal transmission
Typical Applications: Industrial control panels, monitoring systems
Type 3 Housing (E-DB25)
Higher pin count for multi-channel parallel transmission (e.g., 25-pin)
Typical Applications: Data acquisition, testing instruments
Type 4 Housing (E-DB37)
Larger size for high-density wiring (e.g., 37-pin)
Typical Applications: Industrial bus systems, military and traffic control equipment
2. Key Features of Waterproof D-SUB Connector Housings
High IP Protection Level:
Equipped with advanced sealing rings, achieving IP67/IP68 waterproof rating, effectively blocking dust and water ingress.Strong Compatibility:
Designed according to international D-sub standards, ensuring seamless integration with existing systems.Multi-Scenario Adaptability:
Reliable performance across outdoor telecom base stations, railway and transportation, industrial robots, and automation systems.
3. Why the Housing Matters
The housing of a waterproof D-SUB connector is not merely an external shell — it is the protective barrier that guarantees long-term system reliability.
From compact 9-pin designs to high-capacity 37-pin options, D-SUB connectors provide engineers with flexibility, robustness, and durability to meet diverse industrial demands.
As the demand for enhanced environmental protection and connectivity performance continues to rise, waterproof D-SUB housings will remain a trusted solution for stable and secure industrial connections.
