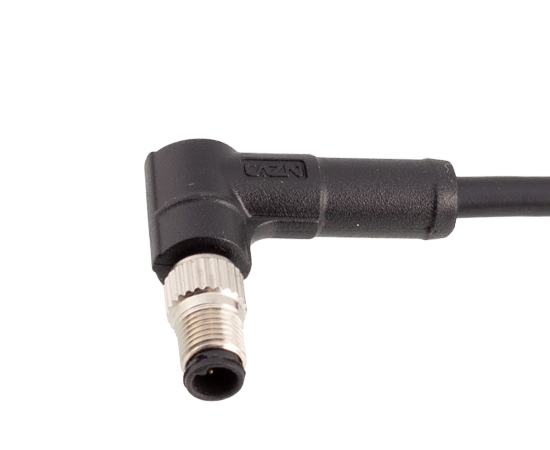

M5 Angled Male Overmolded Plug
MECHANICAL PARAMETERS
| Shell material： | Brass nickel plated |
| Insulator material： | PA66/TPU |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Phosphorus copper gold-plated/Brass copper gold-plated |
| Molding material： | PUR/PVC |
| Insulation impedance： | ≥100 MΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
| Execution standard： | IEC 61076-2-105 |
M5 ELECTRICAL PARAMETERS
| Product Name | Part No.-Shielded | Part No.-Unshielded | Pins | 3D Download | 2D Download |
| M5 Angled Male Overmolded Plug-3Pin-xxMeters-PVC jacket | M5-P3-MWD-xxPV-S | M5-P3-MWD-xxPV | 3 | ||
| M5 Angled Male Overmolded Plug-4Pin-xxMeters-PVC jacket | M5-P4-MWD-xxPV-S | M5-P4-MWD-xxPV | 4 |
*If needing other cable materials please contact our sales.
| Product Catalog | CAZN-M Series products brochure |
| EMC Certification | View |
| RoHS Report | View |
| European Standard Series-EMC Certificate | View |
DATASHEET

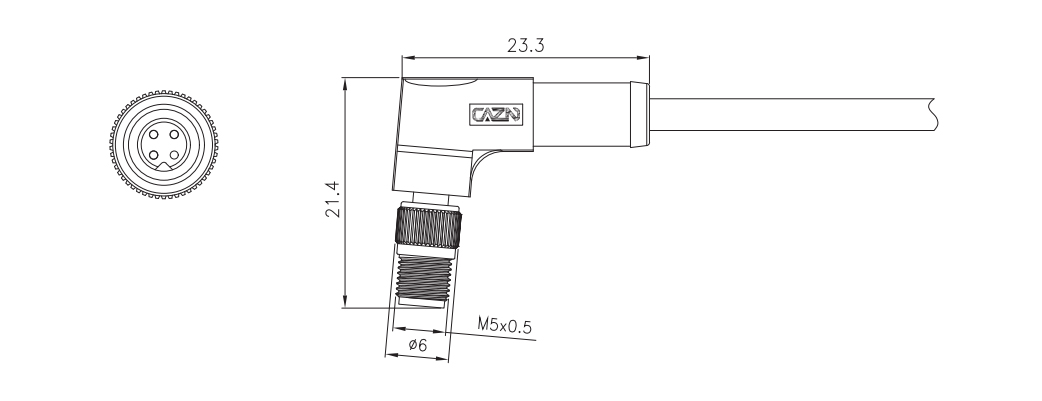

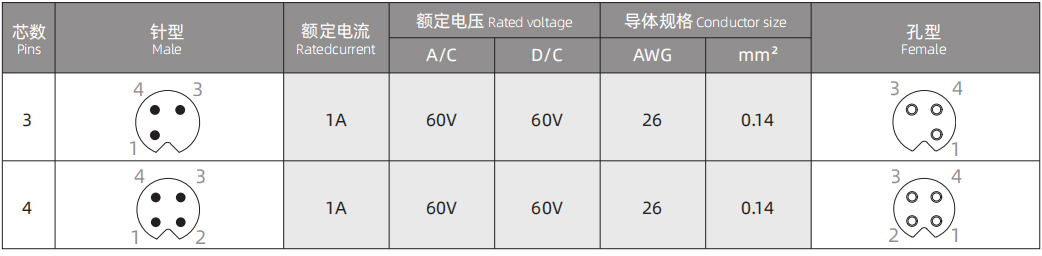

M5 WIRE DEFINITION
