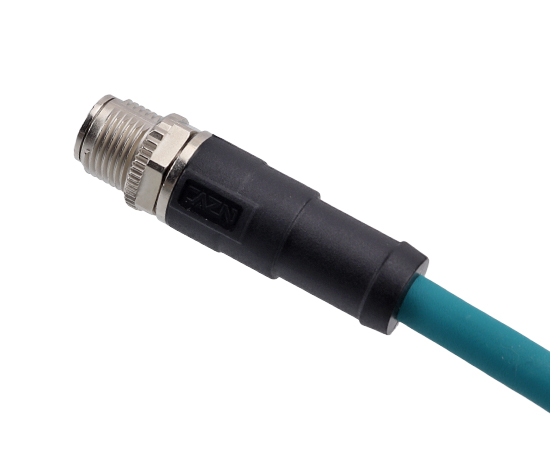

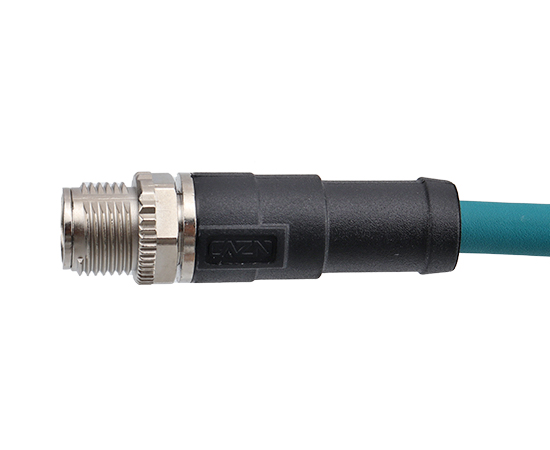

M12 Straight Male Overmolded Plug Data type Shielded
TECHNICAL PARAMETER
| Shell material | Brass nickel plating / Zinc alloy nickel/PA+GF |
| Insulator material | PA+GF / TPU |
| Sealing material | Epoxy resin / Rubber |
| Contact material | Brass / Phosphorus copper gold-plated |
| Molding material | TPA / PVC |
| Insulation impedance | ≥ 100 MΩ |
| Contact impedance | ≤ 5 mΩ |
| Durability | ≥ 500 cycles |
| Applicable temperature | -25℃ ~ +80℃ |
| Waterproof | IP65 / IP67 |
| Executive standard | IEC 61076-2-101 |

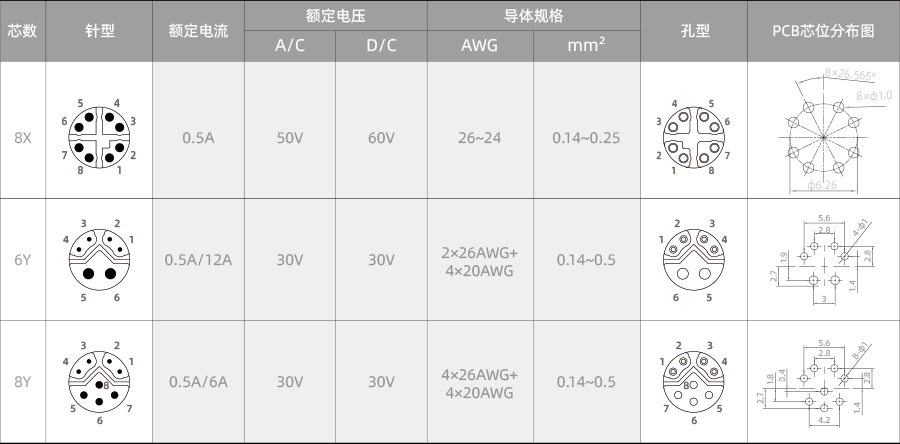

ELECTRICAL PARAMETER
Product Name | Pins | Part No.-Shielded | 3D Download | 2D Download |
M12 Straight Male Overmolded Plug (Data type, Shielded)-xx Meters-PVC Jacket | 8X | M12-P8X-GWA-xxPV-S | ||
M12 Straight Male Overmolded Plug (Data type, Shielded)-xx Meters-PVC Jacket | 6Y | M12-P6Y-GWA-xxPV-S | ||
M12 Straight Male Overmolded Plug (Data type, Shielded)-xx Meters-PVC Jacket | 8Y | M12-P8Y-GWA-xxPV-S |
*If needing other cable materials please contact our sales.
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |

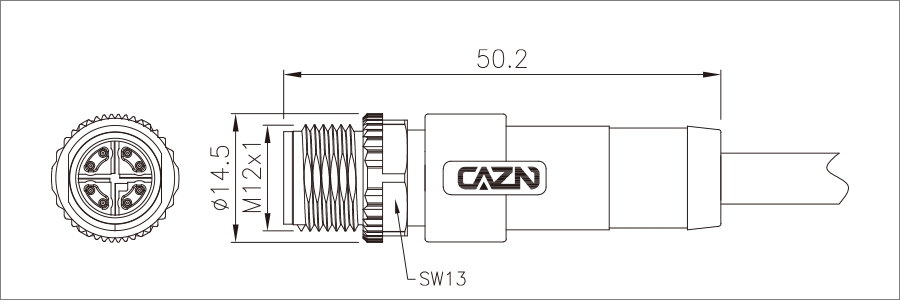

DIMENSION

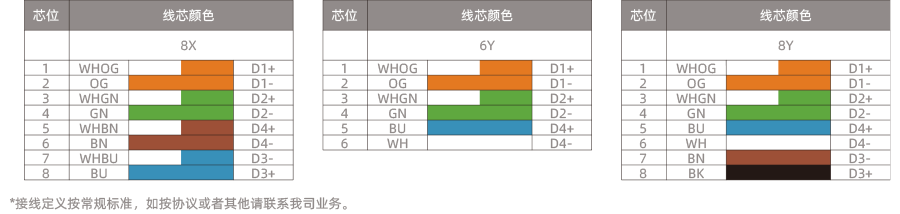

WIRING DEFINITION
