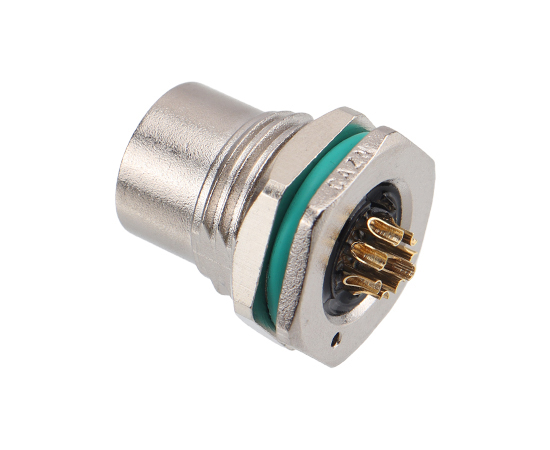

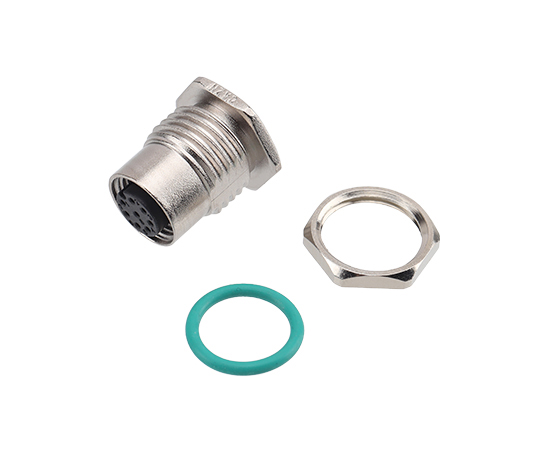

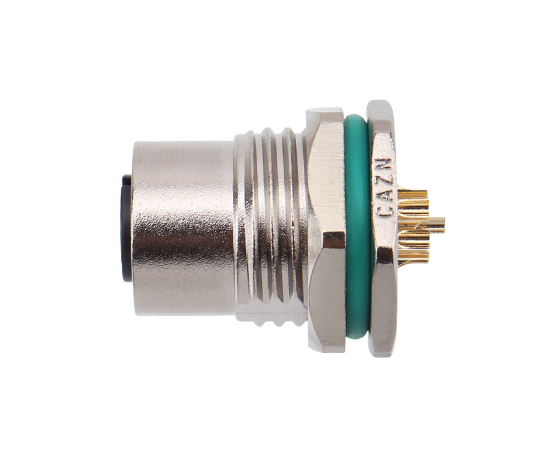

M12 Zinc alloy shell Female Back Mount Socket Solder Screw M16*1.5/PG9

European standard connector M12 series

Structure type: Back mount socket

Pin type: Female type

Product shell：Zinc alloy shell

Contacts number: 2,3,4,5,6,8,12,17 Pins

Connection method: Solder

Shield: No

Certification: CE RoHS

Standard: IEC 61076-2-101

Shopping

TECHNICAL PARAMETER

Shell material	Brass/Zinc alloy nickel plated
Insulator material	PA+GF / TPU
Sealing material	Fluoro rubber,Green
Contact material	Brass ， gold-plated
Molding material	TPU / PVC
Insulation impedance	≥ 100 MΩ
Contact impedance	≤ 5 mΩ
Durability	≥ 500 Cycles
Applicable temperature	-40℃ ~ +80℃
Waterproof	IP67
Executive standard	IEC 61076-2-101

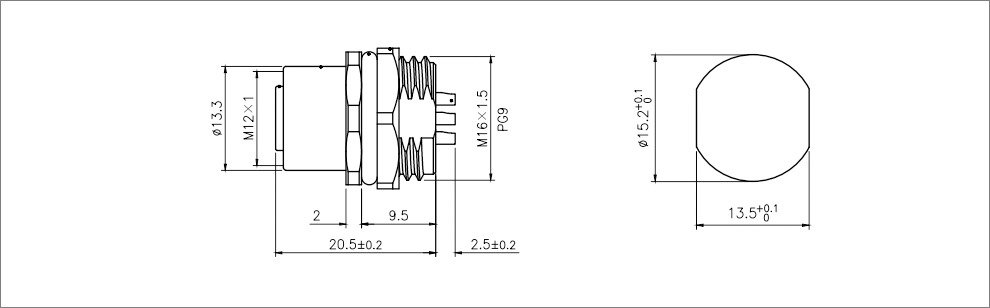

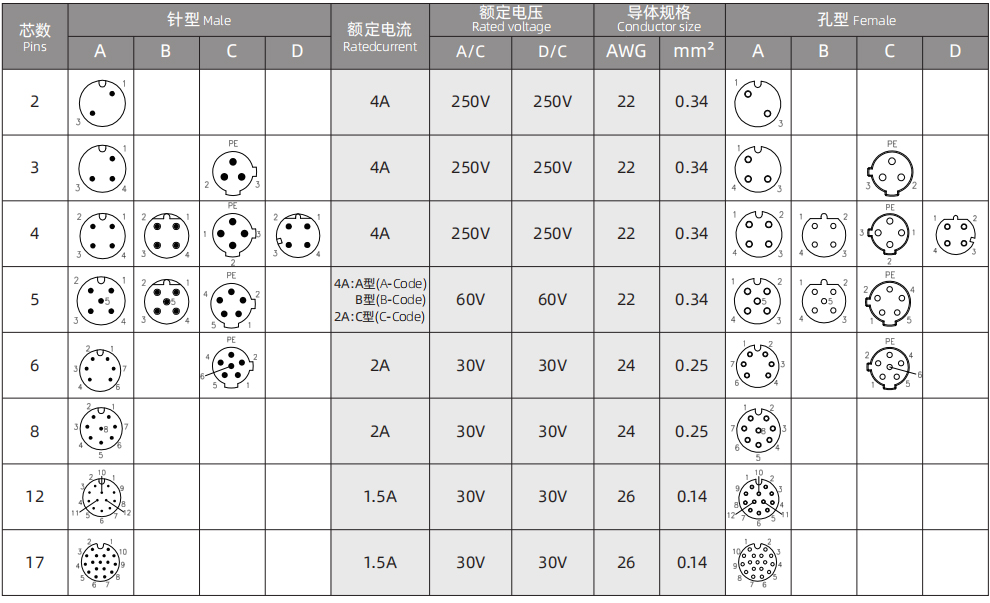

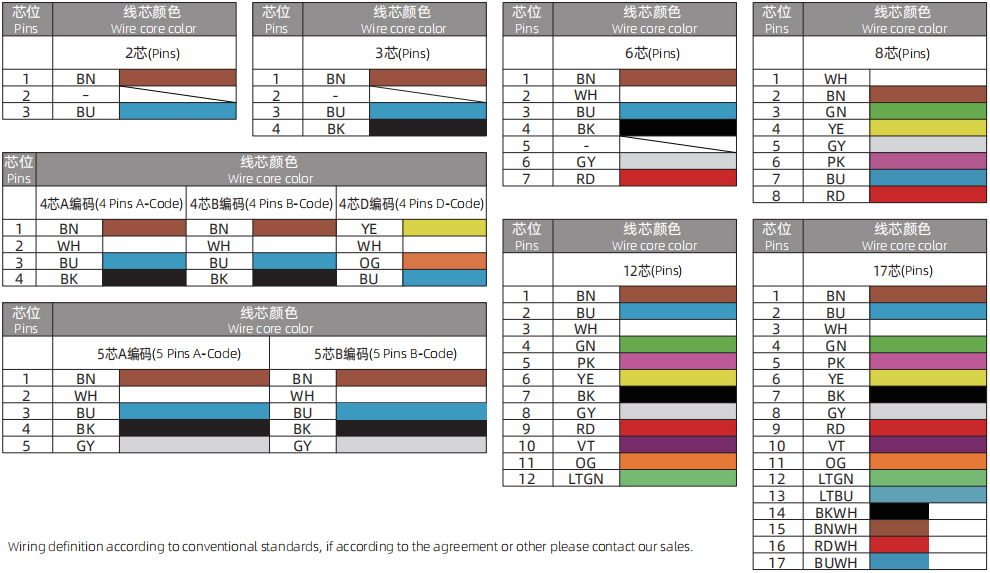

ELECTRICAL PARAMETERS


Product Name	Pins	Outlet Size-PG9	Outlet Size-M16x1.5	3D Download	2D Download
M12 Zinc alloy shell Female Back Mount Socket (Solder)	2A	M12A-02PFF-GWP9-XHJ	M12A-02PFF-GW16-XHJ	M16/PG9	M16/PG9
M12 Zinc alloy shell Female Back Mount Socket (Solder)	3A	M12A-03PFF-GWP9-XHJ	M12A-03PFF-GW16-XHJ	M16/PG9	M16/PG9
M12 Zinc alloy shell Female Back Mount Socket (Solder)	4A	M12A-04PFF-GWP9-XHJ	M12A-04PFF-GW16-XHJ	M16/PG9	M16/PG9
M12 Zinc alloy shell Female Back Mount Socket (Solder)	4B	M12B-04PFF-GWP9-XHJ	M12B-04PFF-GW16-XHJ	M16/PG9	M16/PG9
M12 Zinc alloy shell Female Back Mount Socket (Solder)	4D	M12D-04PFF-GWP9-XHJ	M12D-04PFF-GW16-XHJ	M16/PG9	M16/PG9
M12 Zinc alloy shell Female Back Mount Socket (Solder)	5A	M12A-05PFF-GWP9-XHJ	M12A-05PFF-GW16-XHJ	M16/PG9	M16/PG9
M12 Zinc alloy shell Female Back Mount Socket (Solder)	5B	M12B-05PFF-GWP9-XHJ	M12B-05PFF-GW16-XHJ	M16/PG9	M16/PG9
M12 Zinc alloy shell Female Back Mount Socket (Solder)	5D	M12D-05PFF-GWP9-XHJ	M12D-05PFF-GW16-XHJ	M16/PG9	M16/PG9
M12 Zinc alloy shell Female Back Mount Socket (Solder)	6A	M12A-06PFF-GWP9-XHJ	M12A-06PFF-GW16-XHJ	M16/PG9	M16/PG9
M12 Zinc alloy shell Female Back Mount Socket (Solder)	8A	M12A-08PFF-GWP9-XHJ	M12A-08PFF-GW16-XHJ	M16/PG9	M16/PG9
M12 Zinc alloy shell Female Back Mount Socket (Solder)	12A	M12A-12PFF-GWP9-XHJ	M12A-12PFF-GW16-XHJ	M16/PG9	M16/PG9
M12 Zinc alloy shell Female Back Mount Socket (Solder)	17A	M12A-17PFF-GWP9-XHJ	M12A-17PFF-GW16-XHJ	M16/PG9	M16/PG9
