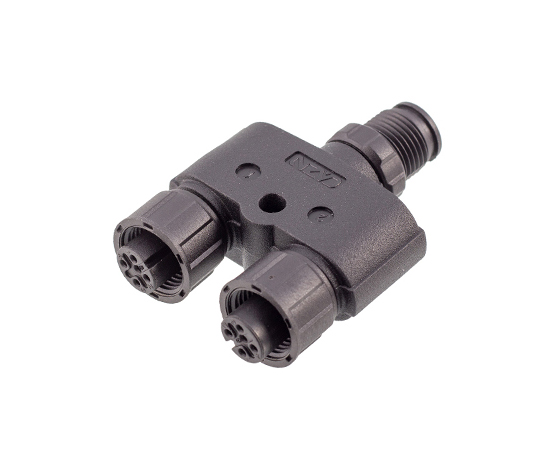

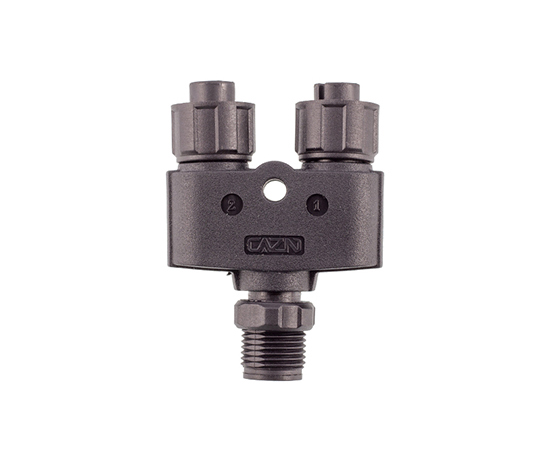

M12 Y-Type Adapter (PSS, Plastic type)
Technical Parameter
Shell material | brass nickel plating/zinc alloy nickel/PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | epoxy resin/rubber |
Contact material | brass /phosphorus copper gold-plated |
Molding material | TPU/PVC |
Insulation impedance | ≥ 100 M Ω |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 cycles |
Applicable temperature | -25 ℃~+80 ℃ |
Waterproof | IP65/IP67 |
Executive standard | IEC 61076-2-101 |

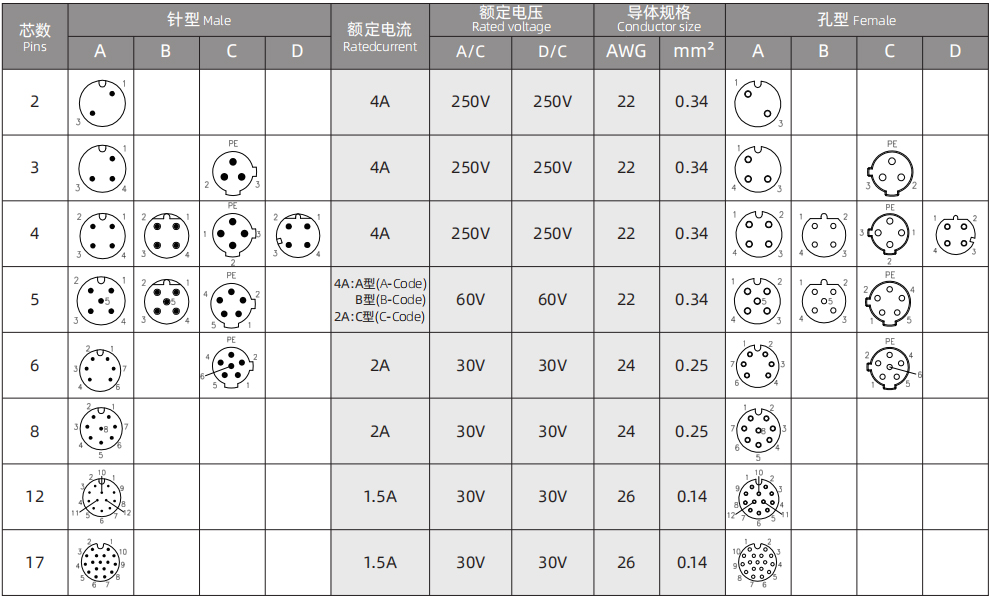

Electrical paramete
| Product name | Models | 3D Download | 2D Download |
| M12 Y-Type Adapter (PSS,Plastic type) | M12A-02PM/M12A-02PFF-YP | ||
| M12 Y-Type Adapter (PSS,Plastic type) | M12A-03PM/M12A-03PFF-YP | ||
| M12 Y-Type Adapter (PSS,Plastic type) | M12A-04PM/M12A-04PFF-YP | ||
| M12 Y-Type Adapter (PSS,Plastic type) | M12A-05PM/M12A-05PFF-YP |
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |
Dimennsion
Wiring Definition
