TECHNICAL PARAMETER
| Shell material | Brass nickel plating/Zinc alloy nickel/PA+GF |
| Insulator material | PA+GF/TPU |
| Sealing material | Epoxy resin / Rubber |
| Contact material | Brass / Phosphorus copper gold-plated |
| Molding material | TPU/PVC |
| Insulation impedance | ≥ 100 MΩ |
| Contact impedance | ≤ 5 mΩ |
| Durability | ≥ 500 Cycles |
| Applicable temperature | -25℃ ~ +80℃ |
| Waterproof | IP65/IP67 |
| Executive standard | IEC 61076-2-101 |
ELECTRICAL PARAMETER
Product name | Cut-Out Size-M12 | 3D Download | 2D Download |

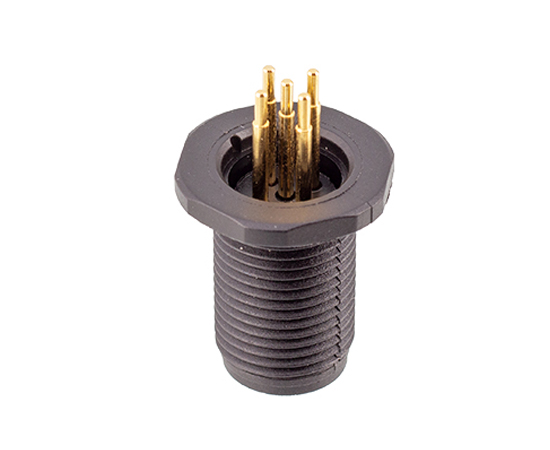

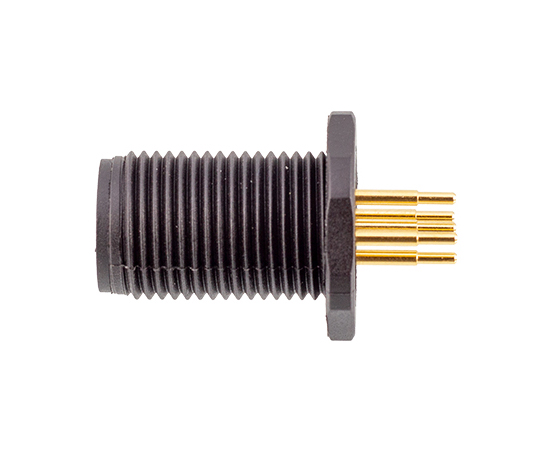

M12 Male Back Mount Socket (PCB, Screw M12*1, Plastic type) | M12-P2A-PPF M12 | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Plastic type) | M12-P3A-PPF M12 | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Plastic type) | M12-P3C-PPF M12 | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Plastic type) | M12-P4A-PPF M12 | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Plastic type) | M12-P2A-PPF M12 | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Plastic type) | M12-P2A-PPF M12 | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Plastic type) | M12-P5A-PPF M12 | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Plastic type) | M12-P2A-PPF M12 | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Plastic type) | M12-P2A-PPF M12 | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Plastic type) | M12-P2A-PPF M12 | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Plastic type) | M12-P2A-PPF M12 | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Plastic type) | M12-P2A-PPF M12 | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Plastic type) | M12-P2A-PPF M12 | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Plastic type) | M12-P17A-PPF M12 |
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |
DIMENSION
PCB PIN BITMAP
WIRING DEFINITION
