Technical Parameter
Shell material | Brass nickel plating/Zinc alloy nickel/PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | Epoxy resin/Rubber |
Contact material | Brass /Phosphorus copper gold-plated |
Molding material | TPU/PVC |
Insulation impedance | ≥ 100 m Ω |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 cycles |
Applicable temperature | -25 ℃~+80 ℃ |
Waterproof | IP65/IP67 |
Executive standard | IEC 61076-2-101 |
Electrical parameter
Product name | Outlet size-14*14 | 3D Download | 2D Download |

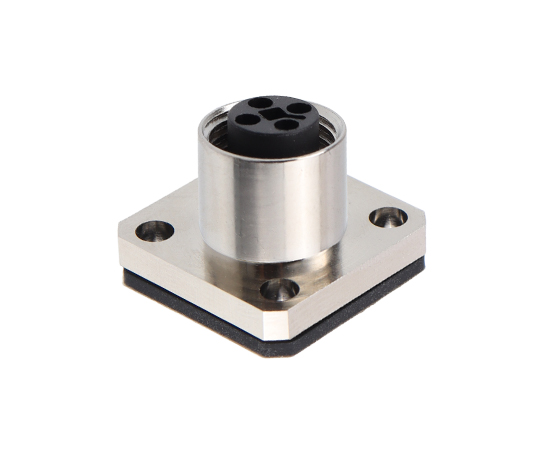

M12 square flange female socket power type 3PS solder 14*14 | M12S-03PHF-GW16 | ↓ | ↓ |
M12 square flange female socket power type 4PS solder 14*14 | M12S-04PHF-GW16 | ↓ | ↓ |
M12 square flange female socket power type 2T solder 14*14 | M12T-02PHF-GW16 | ↓ | ↓ |
M12 square flange female socket power type 2PT solder 14*14 | M12T-03PHF-GW16 | ↓ | ↓ |
M12 square flange female socket power type 3PT solder 14*14 | M12T-04PHF-GW16 | ↓ | ↓ |
M12 square flange female socket power type 2K solder 14*14 | M12K-02PHF-GW16 | ||
M12 square flange female socket power type 2PK solder 14*14 | M12K-03PHF-GW16 | ||
M12 square flange female socket power type 3PK solder 14*14 | M12K-04PHF-GW16 | ||
M12 square flange female socket power type 4PK solder 14*14 | M12K-05PHF-GW16 | ||
M12 square flange female socket power type 2L solder 14*14 | M12L-02PHF-GW16-N | ||
M12 square flange female socket power type 2FL solder 14*14 | M12L-03PHF-GW16 | ||
M12 square flange female socket power type 3L solder 14*14 | M12L-03PHF-GW16-N | ||
M12 square flange female socket power type 3FL solder 14*14 | M12L-04PHF-GW16 | ||
M12 square flange female socket power type 4L solder 14*14 | M12L-04PHF-GW16-N | ||
M12 square flange female socket power type 4FL solder 14*14 | M12L-05PHF-GW16 |
Dimension
Wiring Definition
