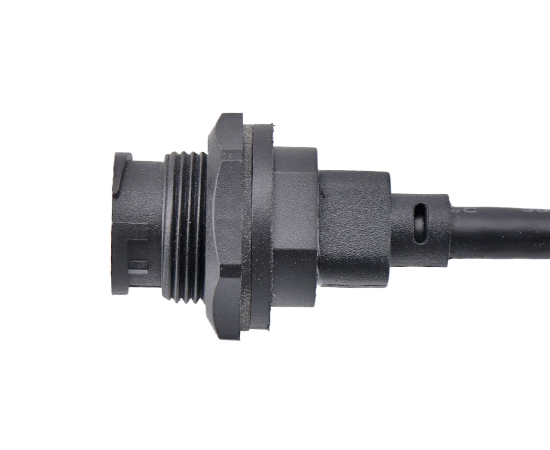

TYPE-C Female Back mount Receptacle to USB Male Overmolded Cable(Bayonet)
Mechanical parameter
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Contact material: | Brass |
| Cable material: | PVC |
| Coupling: | Thread (T); Bayonet(B) |
| Waterproof grade: | IP67，IP68 |
| Rated voltage | 30V |
| Rated current | 1.5A |
| Insulation resistance: | 2000 mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Durability: | ≥2000~10000次(Cycles) |
| Product Name | Standards | Wire | Shielded | P/N | 3D Download | 2D Download |
| TYPE-C Female/USB Male Back mount Receptacle Overmolded Cable(Bayonet)-xxM | USB 2.0 | PVC | YES | E10B-FT2-PWF/MU2-NWA-xxPV-S | ||
| TYPE-C Female/USB Male Back mount Receptacle Overmolded Cable(Bayonet)-xxM | USB 2.0 | PVC | NO | E10B-FT2-PWF/MU2-NWA-xxPV | ||
| TYPE-C Female/USB Male Back mount Receptacle Overmolded Cable(Bayonet)-xxM | USB 2.0 | PU | YES | E10B-FT2-PWF/MU2-NWA-xxPU-S | ||
| TYPE-C Female/USB Male Back mount Receptacle Overmolded Cable(Bayonet)-xxM | USB 2.0 | PU | NO | E10B-FT2-PWF/MU2-NWA-xxPU | ||
| TYPE-C Female/USB Male Back mount Receptacle Overmolded Cable(Bayonet)-xxM | USB 3.0 | PVC | YES | E10B-FT3-PWF/MU3-NWA-xxPV-S | ||
| TYPE-C Female/USB Male Back mount Receptacle Overmolded Cable(Bayonet)-xxM | USB 3.0 | PVC | NO | E10B-FT3-PWF/MU3-NWA-xxPV | ||
| TYPE-C Female/USB Male Back mount Receptacle Overmolded Cable(Bayonet)-xxM | USB 3.0 | PU | YES | E10B-FT3-PWF/MU3-NWA-xxPU-S | ||
| TYPE-C Female/USB Male Back mount Receptacle Overmolded Cable(Bayonet)-xxM | USB 3.0 | PU | NO | E10B-FT3-PWF/MU3-NWA-xxPU |
*If need to order other collocation or wire, please consult customer service
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |

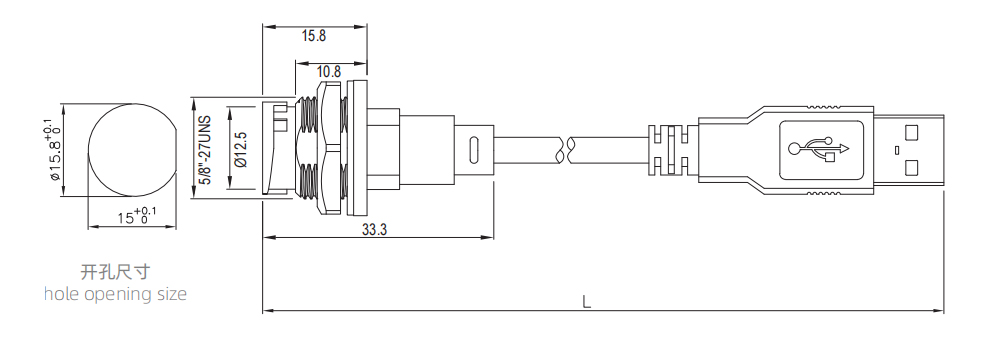

Dimension
