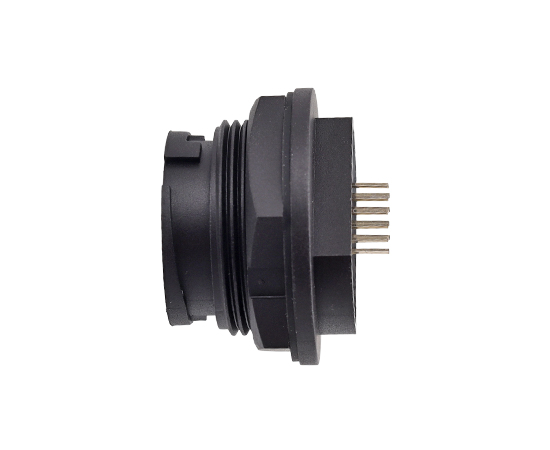

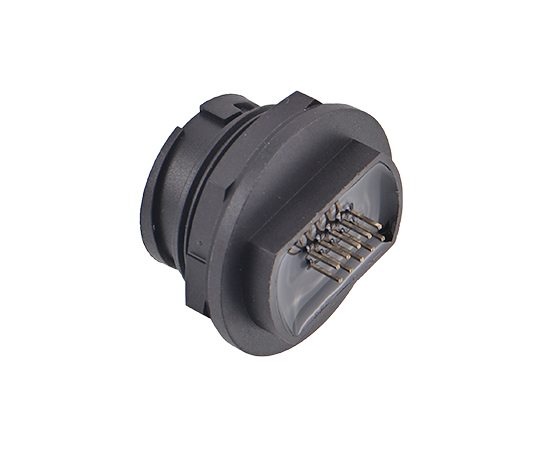

E16USB Female Back Mount PCB Receptacle(Bayonet)
TECHNICAL PARAMETER
| Shell material： | PA66+GF UL94 Black |
| Contact material： | Brass Gold plated |
| Sealing material： | silica gel Black |
| Insert material： | PA66+GF UL94 Black |
| Coupling： | Bayonet connection(B) |
| Termination： | Dip solder |
| Contact Resistance： | ≦30mΩ |
| Mating cycles： | ≥500次 |
| Insulation Resistance： | 100MΩ |
| Temperature range： | -45℃ ~ +105℃ |
| Rated current： | 1.5A |
| Degree of protection： | IP65/IP67 |
| Product specifications： | 1"-20UNEF |
| Withstanding voltage： | ≧AC 1000V / 1 MIN |
| Flame retardant grade： | UL94-V0 |
| Product Name | Pins | P/N | 3D Download | 2D Download |
| E16 EUSB Female Back Mount PCB Receptacle(Bayonet) | USB2.0 | E16B-FU2-PPF | ↓ | |
| E16 EUSB Female Back Mount PCB Receptacle(Bayonet) | USB3.0 | E16B-FU3-PPF | ↓ |
| PRODUCT CATALOG | CAZN-Plastic waterproof connector series |
| EMC | EMC Certificate、EMC Report、REACH233 Report |
| RoHS | Certificate、Report |
| WATERPROOF TEST REPORT | Certificate、Report |

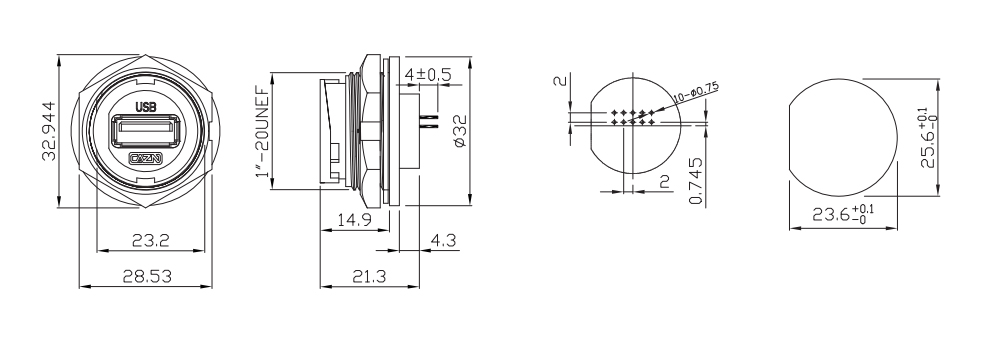

DIMENSIONS
PINS ARRANGEMENT
