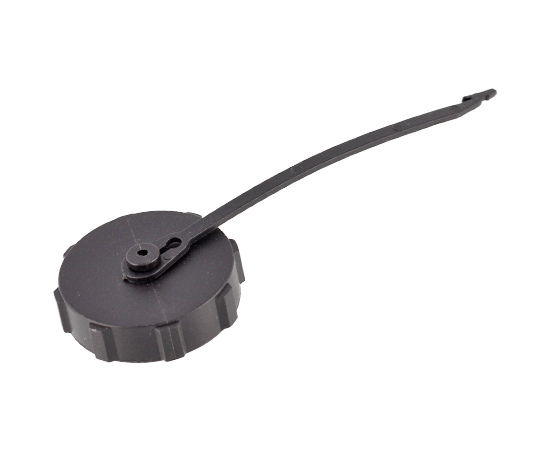

E13 Dust Cover Latch(Thread)
Mechanical parameter
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Coupling: | Thread (T) |
| Solder： | ≥500 Cycles |
| Applicable temperature: | -40℃ ~ +105℃ |
| Waterproof grade: | IP67，IP68 |
| Specifications: | 13/16"-28UNS |
| Product Name | Coupling | Installation | screw | P/N | 3D Download | 2D Download |
| E13 dust cover | Threaded | Round Hole | 13/16"-28UNS | E13T-VP-ST | ||
| E13 dust cover | Threaded | Latch | 13/16"-28UNS | E13T-VP-PI |

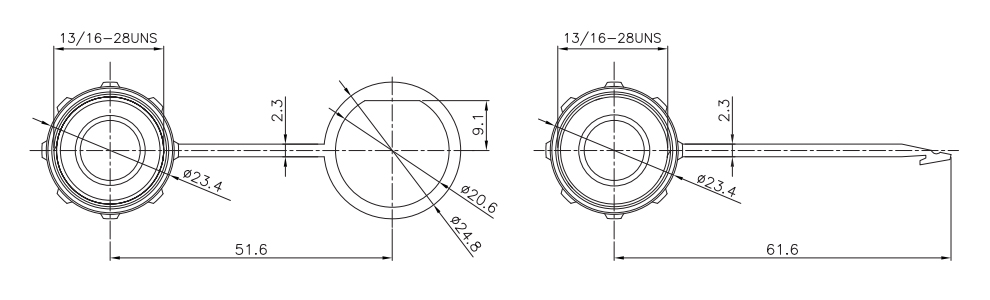

尺寸图
