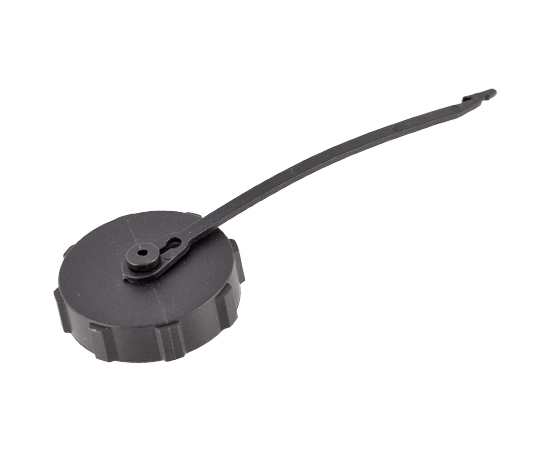

E13 Dust Cover Latch(Thread)
Mechanical parameter
| Shell material： | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Coupling： | Threaded (T) |
| Durability： | ≥50000次 |
| Applicable temperature： | -40℃ ~ +105℃ |
| Waterproof grade: | IP67，IP68 |
| Specifications: | 13/16"-28UNS |
| Product Name | Coupling | Installation | screw | P/N | 3D Download | 2D Download |
| E13 dust cover | Threaded | Round Hole | 13/16"-28UNS | E13T-VP-ST | ||
| E13 dust cover | Threaded | Latch | 13/16"-28UNS | E13T-VP-PI | ||
| E13 dust cover | Bayonet | Round Hole | 13/16"-28UNS | E13B-VP-ST | ||
| E13 dust cover | Bayonet | Latch | 13/16"-28UNS | E13B-VP-PI |
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |

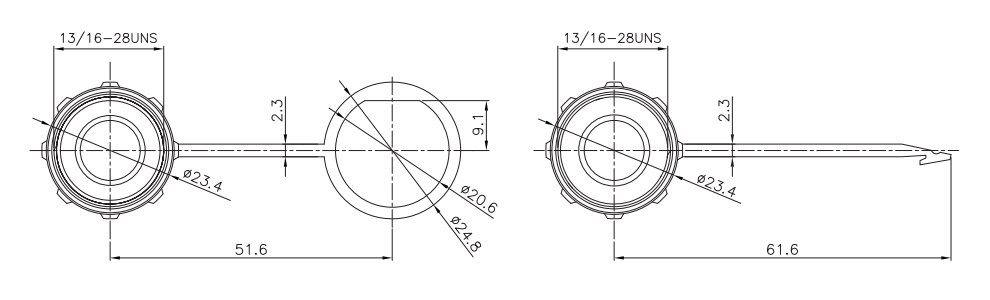

Dimension
