K Series Plug caps
TECHNICAL PARAMETER
| Durability: | >5000 Cycles |
| Humidity: | Up to 95% at 60°C/140°F |
| Operating temperature: | -55℃ ~ +200℃ |
| Anti-vibration performance: | 10-2000 Hz,15g |
| Impact resistance: | 100g,6ms |
| Salt spray corrosion test: | >1000 h |
| Protection level: | IP50 |
| Product Description | Series | Part Number | 3D Download | 2D Download |
| K Series-Plug Caps 0K | 0K | BFG.0K.100.NAS | ||
| K Series-Plug Caps 1K | 1K | BFG.1K.100.NAS | ||
| K Series-Plug Caps 2K | 2K | BFG.2K.100.NAS | ||
| K Series-Plug Caps 3K | 3K | BFG.3K.100.NAS |
| Product Catalog | STA-Push Pull Series Brochure |

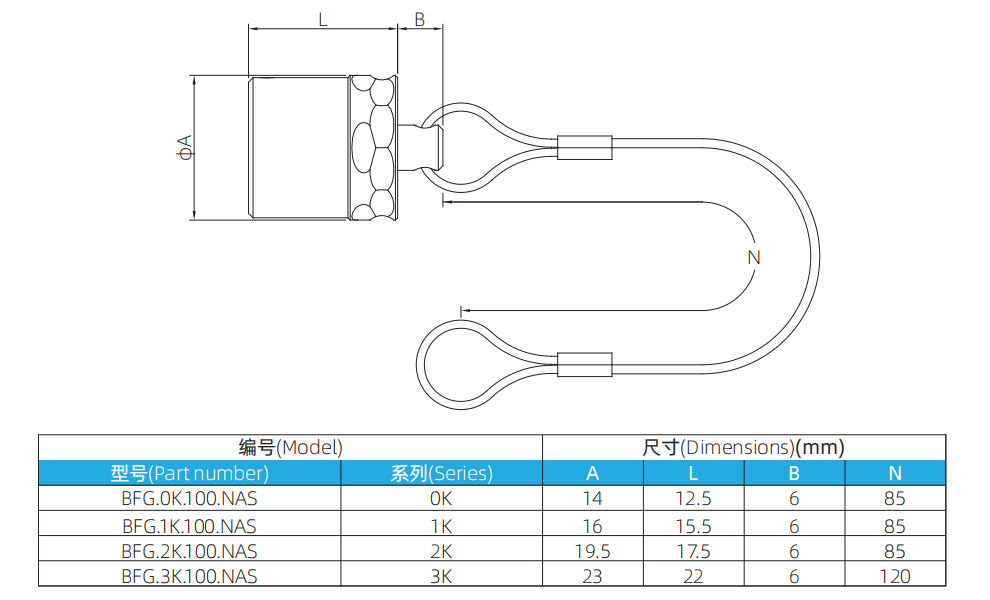

DIMENSION
