M8 Straight Female Overmolded Plug (LED)
MECHANICAL PARAMETERS
| Shell material： | Brass nickel plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Phosphorus copper gold-plated/Brass copper gold-plated |
| Molding material： | TPU/PVC |
| Insulation impedance： | ≥100 MΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
| Execution standard： | IEC 61076-2-104 |
ELECTRICAL PARAMETERS
| Product Name | LED Qty | Pins | Part No. | 3D Download | 2D Download |
| M8 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 2 lights PNP | 3A | M8-S3A-MWA-1PV-LP2 |
|
|
| M8 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 2 lights NPN | 3A | M8-S3A-MWA-1PV-LN2 |
|
|
| M8 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 3 lights PNP | 3A | M8-S3A-MWA-1PV-LP3 |
|
|
| M8 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 3 lights NPN | 3A | M8-S3A-MWA-1PV-LN3 |
|
|
| M8 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 2 lights PNP | 4A | M8-S4A-MWA-1PV-LP2 |
|
|
| M8 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 2 lights NPN | 4A | M8-S4A-MWA-1PV-LN2 |
|
|
| M8 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 3 lights PNP | 4A | M8-S4A-MWA-1PV-LP3 |
|
|
| M8 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 3 lights NPN | 4A | M8-S4A-MWA-1PV-LN3 |
|
|
*If need to choose other wires, please consult customer service.
| Product Catalog | CAZN-M Series products brochure |
| EMC Certification | View |
| RoHS Report | View |
| European Standard Series-EMC Certificate | View |
DATASHEET

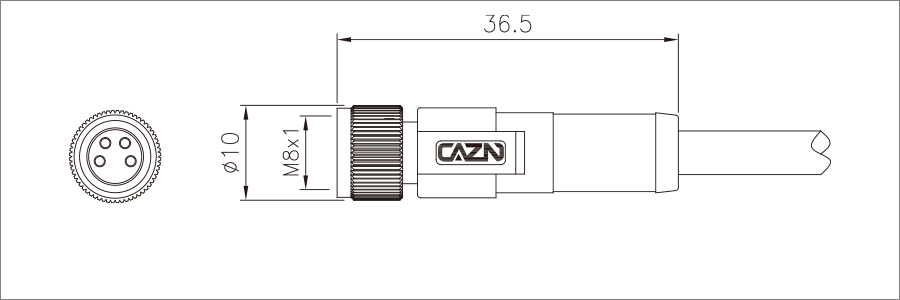

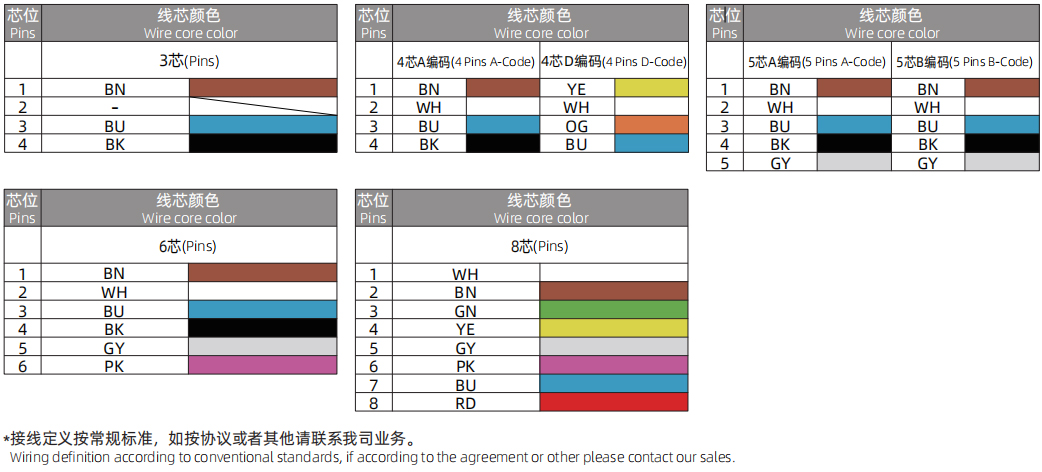

WIRE DEFINITION
