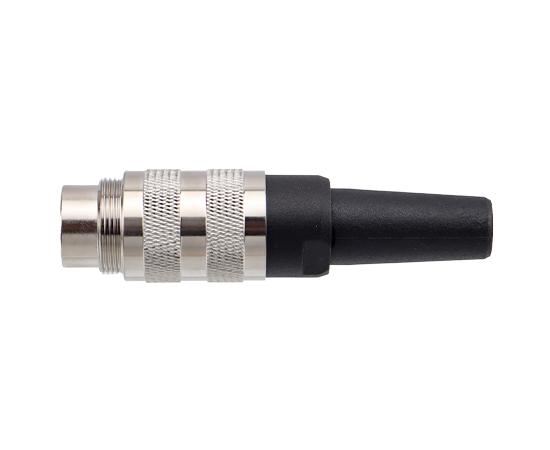

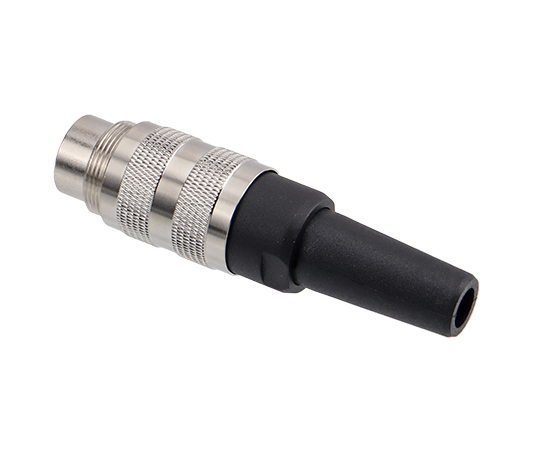

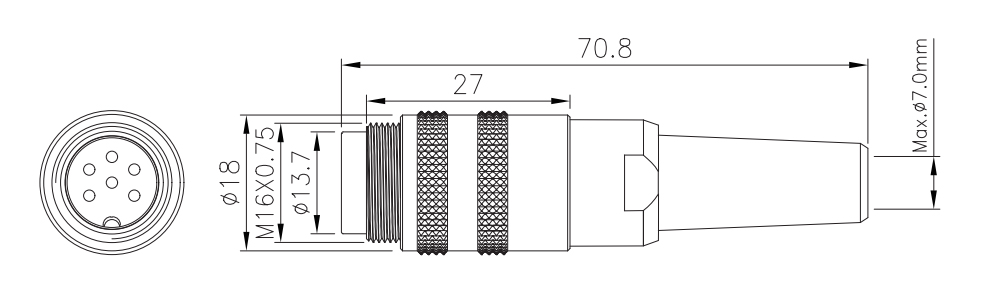

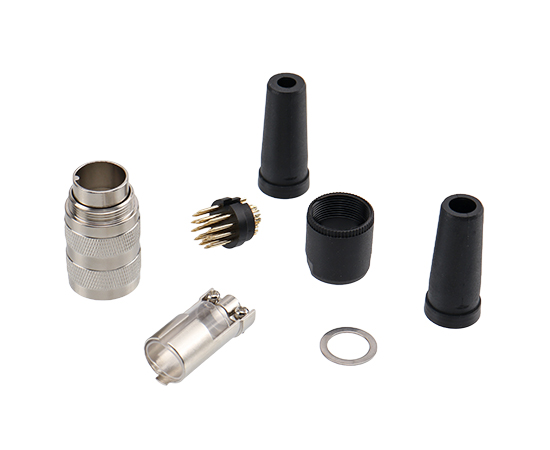

M16 Straight Male Assembled Plug (Solder, Plastic tube)
MECHANICAL PARAMETERS
| Shell material： | Brass/Zinc alloy nickel/Brass nickel plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Wiring range： | PG7:4~6mm; PG9:6~8mm |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
| Implementation standards： | IEC 61076-2-106-2012 |

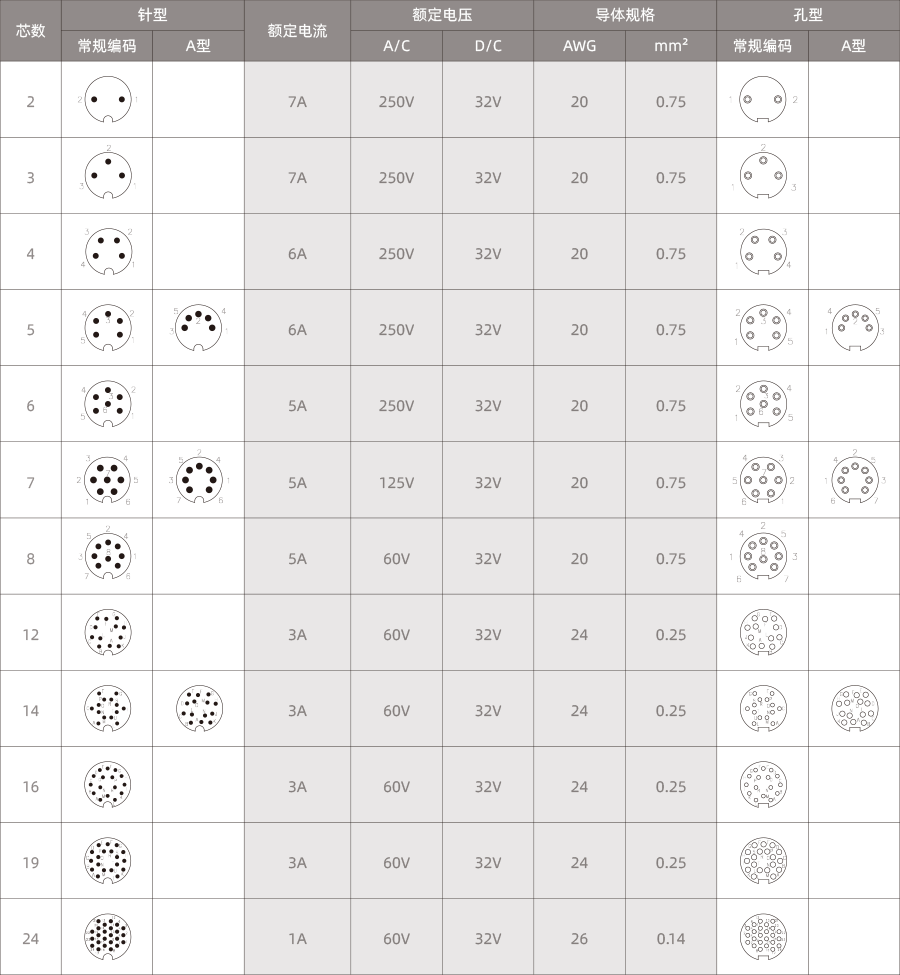

Electrical parameters
| Product name | Outlet size-PG7 | Outlet size-PG9 | Pins | 3D Download | 2D Download |
| M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-2Pin | M16-P2-PWA 5.0-PT | M16-P2-PWA 6.5-PT | 2 | ↓ | |
| M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-3Pin | M16-P3-PWA 5.0-PT | M16-P3-PWA 6.5-PT | 3 | ||
| M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-4Pin | M16-P4-PWA 5.0-PT | M16-P4-PWA 6.5-PT | 4 | ||
| M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-5Pin | M16-P5-PWA 5.0-PT | M16-P5-PWA 6.5-PT | 5 | ||
| M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-6Pin | M16-P6-PWA 5.0-PT | M16-P6-PWA 6.5-PT | 6 | ||
| M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-7Pin | M16-P7-PWA 5.0-PT | M16-P7-PWA 6.5-PT | 7 | ↓ | |
| M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-8Pin | M16-P8-PWA 5.0-PT | M16-P8-PWA 6.5-PT | 8 | ||
| M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-12Pin | M16-P12-PWA 5.0-PT | M16-P12-PWA 6.5-PT | 12 | ||
| M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-14Pin | M16-P14-PWA 5.0-PT | M16-P14-PWA 6.5-PT | 14 | ||
| M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-16Pin | M16-P16-PWA 5.0-PT | M16-P16-PWA 6.5-PT | 16 | ||
| M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-19Pin | M16-P19-PWA 5.0-PT | M16-P19-PWA 6.5-PT | 19 | ||
| M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-24Pin | M16-P24-PWA 5.0-PT | M16-P24-PWA 6.5-PT | 24 | ||
| M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-5Pin-A | M16-P5A-PWA 5.0-PT | M16-P5A-PWA 6.5-PT | 5A | ||
| M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-7Pin-A | M16-P7A-PWA 5.0-PT | M16-P7A-PWA 6.5-PT | 7A | ||
| M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-14Pin-A | M16-P14A-PWA 5.0-PT | M16-P14A-PWA 6.5-PT | 14A |
