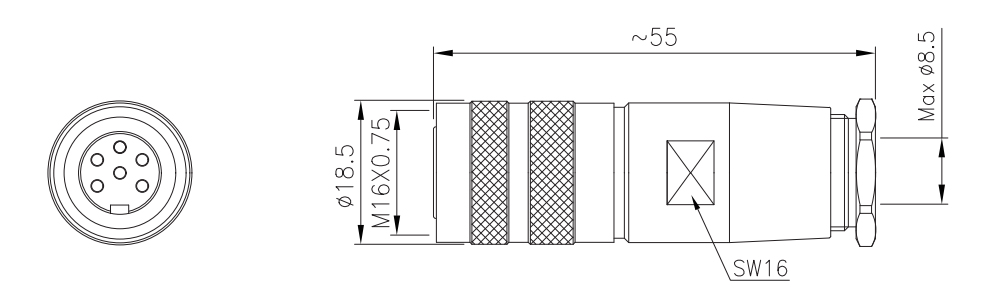

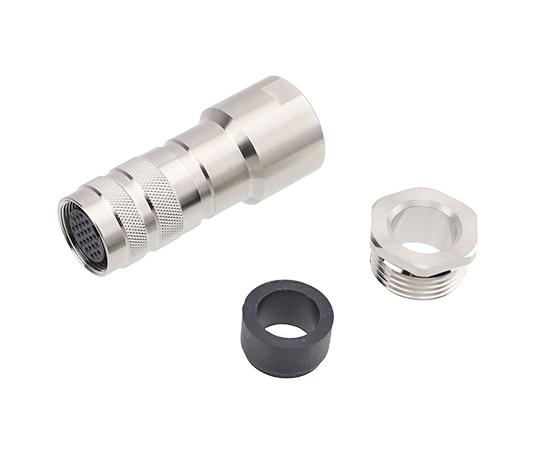

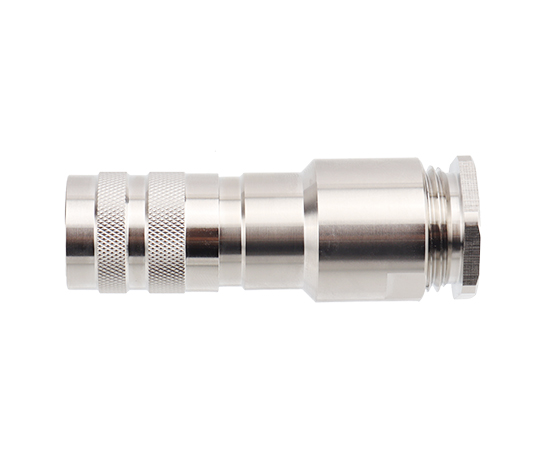

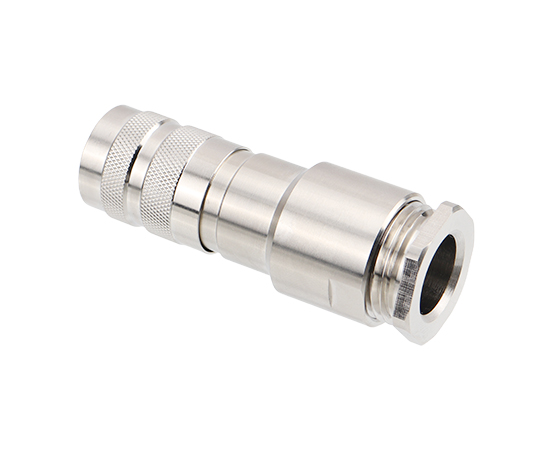

M16 Straight Female Metal Assembled Plug (Solder)
MECHANICAL PARAMETERS
| Shell material： | Brass/Zinc alloy nickel/Brass nickel plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Wiring range： | PG7:4~6mm; PG9:6~8mm |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |

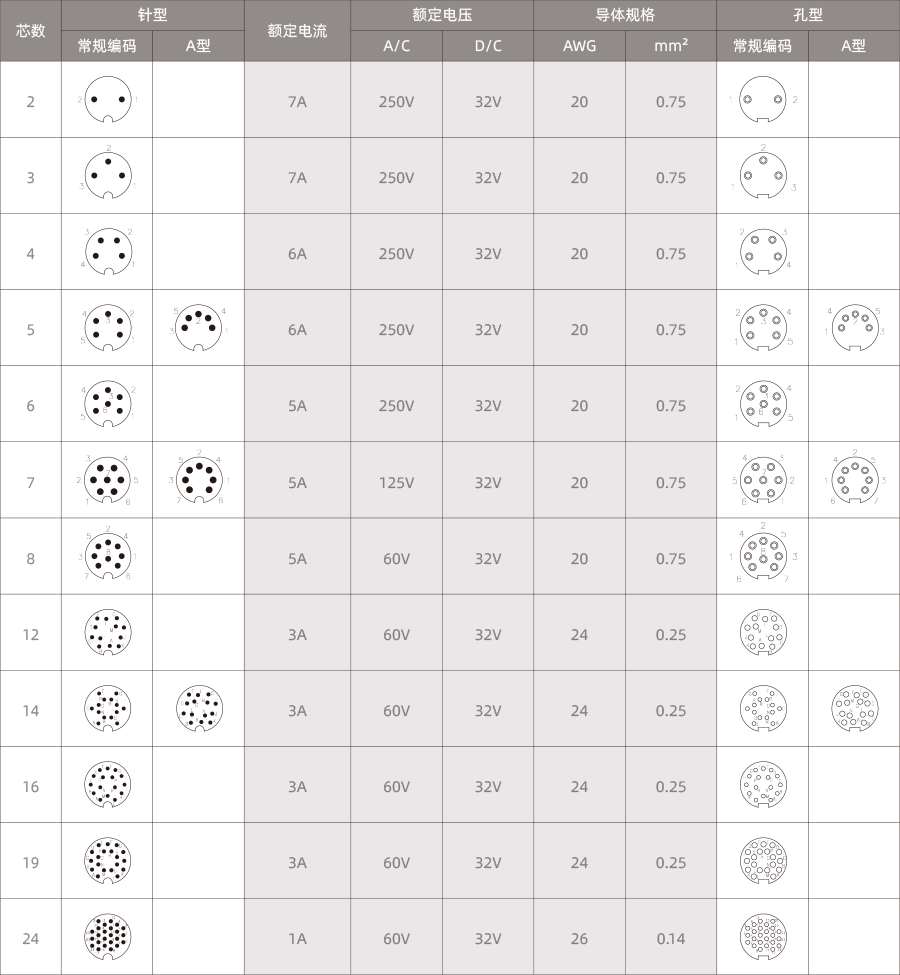

M16 ELECTRICAL PARAMETERS
| Product name | Outlet size-PG7 | Outlet size-PG9 | Pins | 3D Download | 2D Download |
| M16 Straight Female Metal Assembled Plug (Solder)-2Pin | M16-S2-GWA P7 | M16-S2-GWA P9 | 2 | ||
| M16 Straight Female Metal Assembled Plug (Solder)-3Pin | M16-S3-GWA P7 | M16-S3-GWA P9 | 3 | ||
| M16 Straight Female Metal Assembled Plug (Solder)-4Pin | M16-S4-GWA P7 | M16-S4-GWA P9 | 4 | ||
| M16 Straight Female Metal Assembled Plug (Solder)-5Pin | M16-S5-GWA P7 | M16-S5-GWA P9 | 5 | ||
| M16 Straight Female Metal Assembled Plug (Solder)-6Pin | M16-S6-GWA P7 | M16-S6-GWA P9 | 6 | ||
| M16 Straight Female Metal Assembled Plug (Solder)-7Pin | M16-S7-GWA P7 | M16-S7-GWA P9 | 7 | ||
| M16 Straight Female Metal Assembled Plug (Solder)-8Pin | M16-S8-GWA P7 | M16-S8-GWA P9 | 8 | ||
| M16 Straight Female Metal Assembled Plug (Solder)-12Pin | M16-S12-GWA P7 | M16-S12-GWA P9 | 12 | ||
| M16 Straight Female Metal Assembled Plug (Solder)-14Pin | M16-S14-GWA P7 | M16-S14-GWA P9 | 14 | ||
| M16 Straight Female Metal Assembled Plug (Solder)-16Pin | M16-S16-GWA P7 | M16-S16-GWA P9 | 16 | ||
| M16 Straight Female Metal Assembled Plug (Solder)-19Pin | M16-S19-GWA P7 | M16-S19-GWA P9 | 19 | ||
| M16 Straight Female Metal Assembled Plug (Solder)-24Pin | M16-S24-GWA P7 | M16-S24-GWA P9 | 24 | ||
| M16 Straight Female Metal Assembled Plug (Solder)-5Pin-A | M16-S5A-GWA P7 | M16-S5A-GWA P9 | 5A | ||
| M16 Straight Female Metal Assembled Plug (Solder)-7Pin-A | M16-S7A-GWA P7 | M16-S7A-GWA P9 | 7A | ||
| M16 Straight Female Metal Assembled Plug (Solder)-14Pin-A | M16-S14A-GWA P7 | M16-S14A-GWA P9 | 14A |
| Product Catalog | CAZN-M-SERIE-CONNECTOR |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |
DATASHEET
