E16 EFDDI单模单芯板后安装插座(卡扣式)}

  • E16 EFDDI单模单芯板后安装插座(卡扣式)}
  • E16 EFDDI单模单芯板后安装插座(卡扣式)}
  • E16 EFDDI单模单芯板后安装插座(卡扣式)}

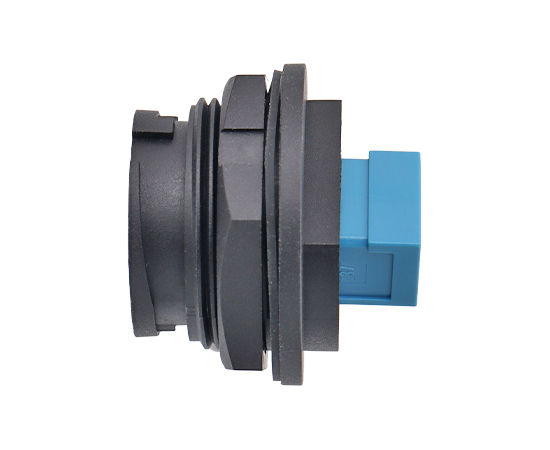

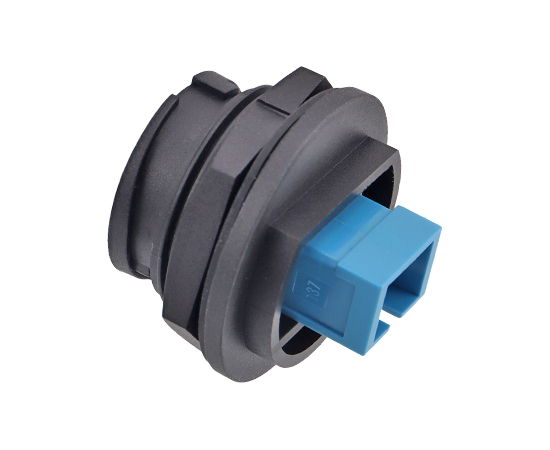

E16FDDI Single-mode Single-core Back Mount Receptacle(Bayonet)

Plastic waterproof connector E16 EFDDI series,

Structural type: Rear mounted socket (Bayonet),

Coupling:Coupling connection,

Core count: Single-mode Single-core F1,

Block: No,

Certification: CE RoHS





MECHANICAL PARAMETER

 Shell material: Thermoplastic PA66 Flame retardant gradeUL94-V0
 Coupling: Bayonet(B)
 Termination way: Coupling connection
 Durability: ≥500次
 Wavelength: 1200~1600nm
 Applicable temperature: -25℃ ~ +80℃
 Transfer rate: 10Gb/s
 Degree of protection: IP67
 Product specifications: 1"-20UNEF
 Salt spray corrosion: 48H


Product NameTail fastenerP/N3D Download2D Download
E16 EFDDI Single-mode Single-core Back Mount Receptacle(Bayonet)F1:Single-mode Single-core  E16B-FF1-PRF

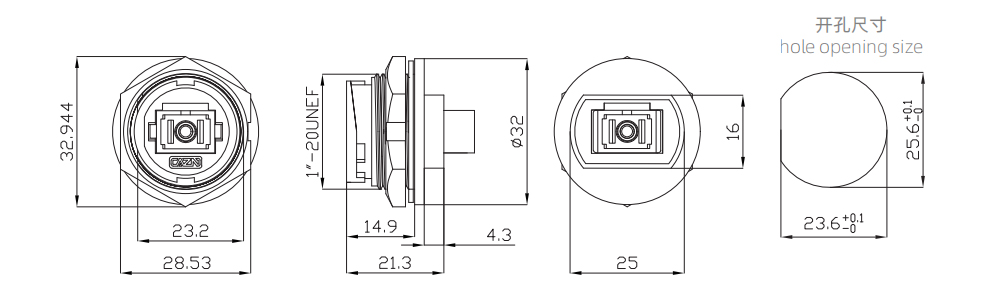

DIMENSIONS
