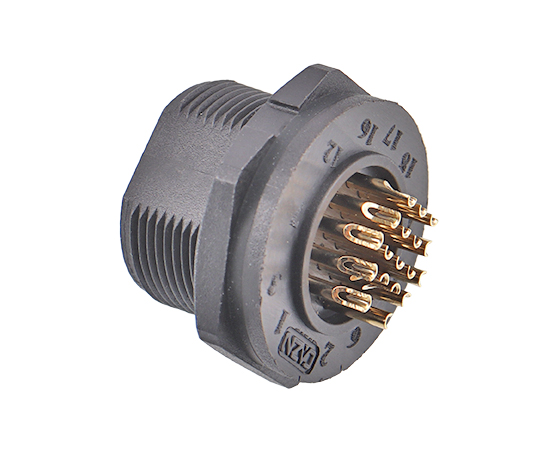

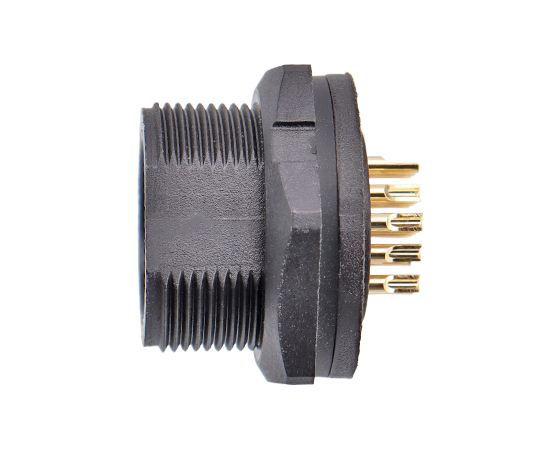

E13 Male Back Mount Solder Receptacle(Threaded)
MECHANICAL PARAMETER
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Contact material: | Copper gold-plated |
| Coupling: | Thread (T); Bayonet(B) |
| Termination Way: | Solder |
| Solder： | ≥500 Cycles |
| Insulation resistance: | ≥2000mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Wiring range: | 6.0mm~10.0mm |
| Waterproof grade: | IP67，IP68 |
| Specifications: | 13/16"-28UNS |
ELECTRICAL PARAMETERS
| Product Name | Pins | P/N | 3D Download | 2D Download |
| E13 Male Back Mount Solder Receptacle(Threaded) | 2 | E13T-P2-PWF | ↓ | ↓ |
| E13 Male Back Mount Solder Receptacle(Threaded) | 3 | E13T-P3-PWF | ↓ | ↓ |
| E13 Male Back Mount Solder Receptacle(Threaded) | 4 | E13T-P4-PWF | ↓ | ↓ |
| E13 Male Back Mount Solder Receptacle(Threaded) | 5 | E13T-P5-PWF | ↓ | ↓ |
| E13 Male Back Mount Solder Receptacle(Threaded) | 6 | E13T-P6-PWF | ↓ | ↓ |
| E13 Male Back Mount Solder Receptacle(Threaded) | 7 | E13T-P7-PWF | ↓ | ↓ |
| E13 Male Back Mount Solder Receptacle(Threaded) | 8 | E13T-P8-PWF | ↓ | ↓ |
| E13 Male Back Mount Solder Receptacle(Threaded) | 9 | E13T-P9-PWF | ↓ | ↓ |
| E13 Male Back Mount Solder Receptacle(Threaded) | 10 | E13T-P10-PWF | ↓ | ↓ |
| E13 Male Back Mount Solder Receptacle(Threaded) | 12 | E13T-P12-PWF | ↓ | ↓ |
| E13 Male Back Mount Solder Receptacle(Threaded) | 14 | E13T-P14-PWF | ↓ | ↓ |
| E13 Male Back Mount Solder Receptacle(Threaded) | 18 | E13T-P18-PWF | ↓ | ↓ |
| E13 Male Back Mount Solder Receptacle(Threaded) | 2B | E13T-P2B-PWF | ↓ | ↓ |
| E13 Male Back Mount Solder Receptacle(Threaded) | 3B | E13T-P3B-PWF | ↓ | ↓ |
| E13 Male Back Mount Solder Receptacle(Threaded) | 4B | E13T-P4B-PWF | ↓ | ↓ |
| E13 Male Back Mount Solder Receptacle(Threaded) | 8C | E13T-P8C-PWF | ↓ | ↓ |
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |

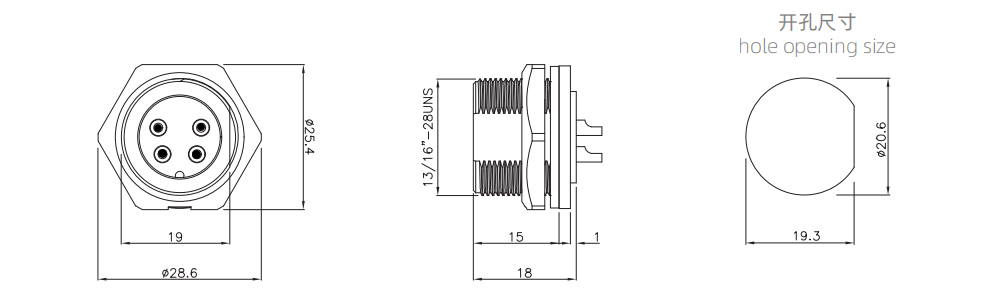

DIMENSION
