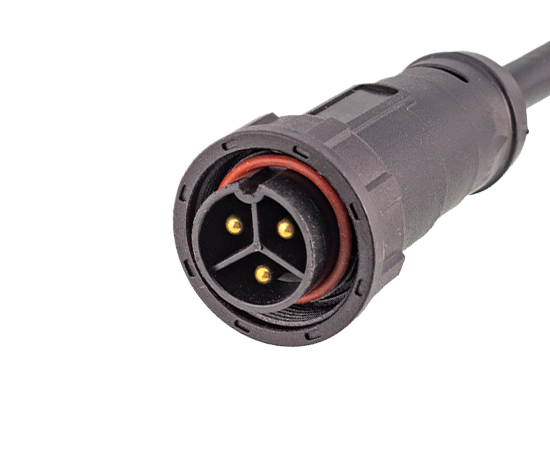

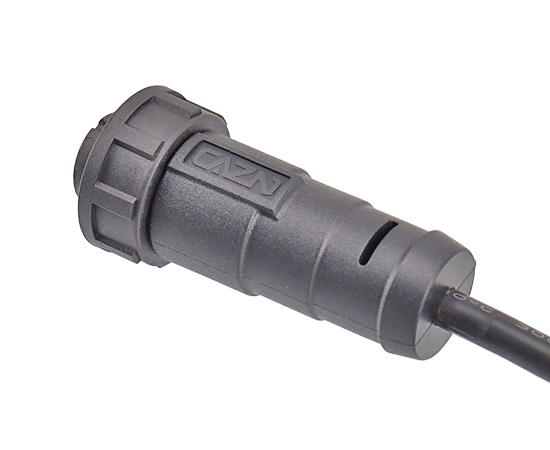

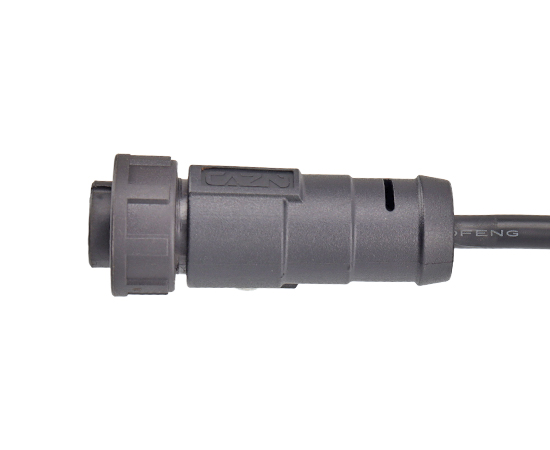

E13 Straight Male Overmolded Plug(Threaded)

Plastic Waterproof Connector  E13 series,

Type: Straight Male Overmolded Plug,

Gender: Male,

Coupling : Thread (T),

Termination: Solder,

Number of cores: 2,3,4,5,6 7,8,9,10,12,14pins,

Shielded: No,

Certification: CE/RoHS



MECHANICAL PARAMETER

 Shell material: Thermoplastic plastic PA66, flame retardant grade: V-0
 Contact material: Copper gold-plated
 Coupling: Thread (T); Bayonet(B)
 Termination Way: Solder
 Solder:  ≥500 Cycles
 Insulation resistance:  ≥2000mΩ
 Applicable temperature:  -40℃ ~ +105℃
 Wiring range: 6.0mm~10.0mm
 Waterproof grade:  IP67,IP68
 Specifications: 13/16"-28UNS


ELECTRICAL PARAMETERS


Product NamePinsP/N3D Download2D Download
E13 Straight Male Overmolded Mating Plug(Threaded)-xxM-PVC2E13T-P2-MWA-xxPV

E13 Straight Male Overmolded Mating Plug(Threaded)-xxM-PVC3E13T-P3-MWA-xxPV

E13 Straight Male Overmolded Mating Plug(Threaded)-xxM-PVC4E13T-P4-MWA-xxPV

E13 Straight Male Overmolded Mating Plug(Threaded)-xxM-PVC5E13T-P5-MWA-xxPV

E13 Straight Male Overmolded Mating Plug(Threaded)-xxM-PVC6E13T-P6-MWA-xxPV

E13 Straight Male Overmolded Mating Plug(Threaded)-xxM-PVC7E13T-P7-MWA-xxPV

E13 Straight Male Overmolded Mating Plug(Threaded)-xxM-PVC8E13T-P8-MWA-xxPV

E13 Straight Male Overmolded Mating Plug(Threaded)-xxM-PVC9E13T-P9-MWA-xxPV

E13 Straight Male Overmolded Mating Plug(Threaded)-xxM-PVC10E13T-P10-MWA-xxPV

E13 Straight Male Overmolded Mating Plug(Threaded)-xxM-PVC12E13T-P12-MWA-xxPV

E13 Straight Male Overmolded Mating Plug(Threaded)-xxM-PVC14E13T-P14-MWA-xxPV

E13 Straight Male Overmolded Mating Plug(Threaded)-xxM-PVC2BE13T-P2B-MWA-xxPV

E13 Straight Male Overmolded Mating Plug(Threaded)-xxM-PVC3BE13T-P3B-MWA-xxPV

E13 Straight Male Overmolded Mating Plug(Threaded)-xxM-PVC4BE13T-P4B-MWA-xxPV

E13 Straight Male Overmolded Mating Plug(Threaded)-xxM-PVC8CE13T-P8C-MWA-xxPV

*If you need to choose other wire, please consult customer service

 Product Catalog CAZN-Plastic Waterproof Connector brochures
 EMC EMC ReportEMCReportREACH233Report
 RoHS CertificateReport
 Waterproof test report CertificateReport

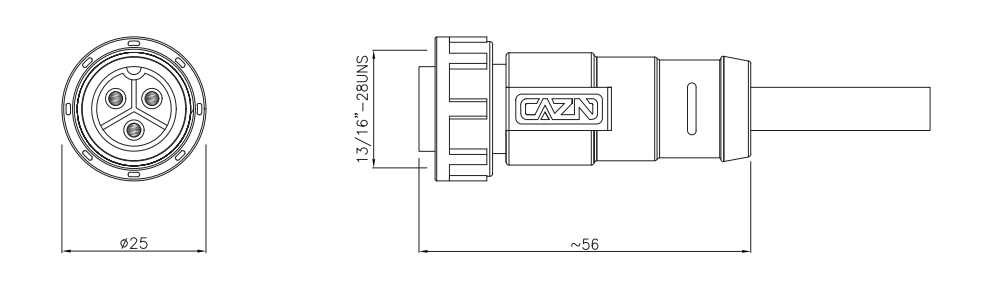

DIMENSION
