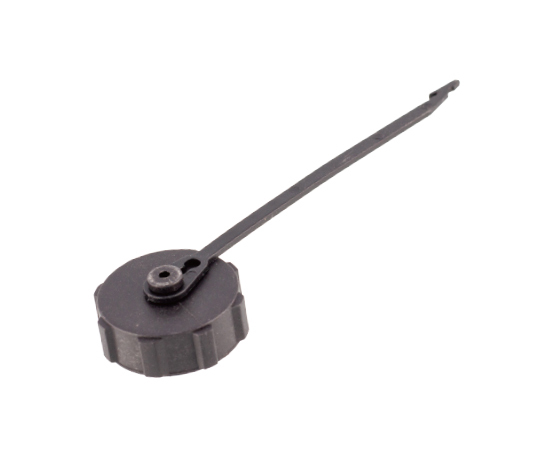

E10 Dust Cover Latch(Bayonet)
Mechanical parameter
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Coupling: | Thread (T); Bayonet(B) |
| Applicable temperature: | -40℃ ~ +105℃ |
| Waterproof grade: | IP67，IP68 |
| Screw size | 5/8"-27UNS |
| Product Name | Coupling | Installation | Screw | P/N | 3D Download | 2D Download |
| E10 dust cover | Threaded | Round Hole | 5/8"-27UNS | E10T-VP-ST | ||
| E10 dust cover | Threaded | Latch | 5/8"-27UNS | E10T-VP-PI | ||
| E10 dust cover | Bayonet | Round Hole | 5/8"-27UNS | E10B-VP-ST | ||
| E10 dust cover | Bayonet | Latch | 5/8"-27UNS | E10B-VP-PI |
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |

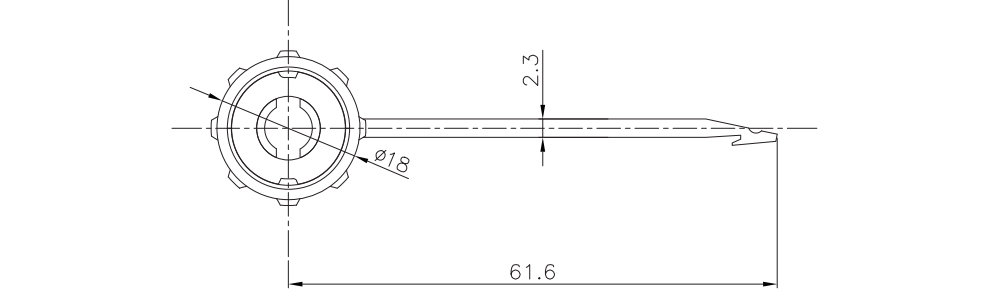

Dimensions
