TECHNICAL PARAMETERS
Shell Material | Aluminum alloy |
Shell Finish | Olive drab chromate coating over |
Shell Alternative finish | Black over zinc plating(RoHs) |
Insulator and grommets | Synethetic rubber |
Contacts | Copper alloy |
Contacts Finish | Gold plate |
Ambient temperature | -55℃ ~ +125℃ |
Mating cycles | ≥ 500 Cycle |
Water pressure | 48 hours in 6 feet per MIL-DTL-26482 3.6.14 |
Humidity | 20-day 50 to 90% humidity teating per MIL-DTL-26482 3.6.25 |
Salt spray | Unmated connectors and protective covers meet 48 hour exposure per EIA364.26 and MIL-DTL-26482 3.6.19 |
Vibration | 10μs max at 10 to 2000Hz(15g) discontinuity per EIA364.28 and MIL-DTL-26482 3.6.21 |
Shock | 50g’s/11ms duration.three major axes 10μs max discontinuity per EIA364.27 and MIL-DTL-26482 3.6.23 |
C22-ELECTRICAL PARAMETERS
C22-KEYMAP CHART
Product Name | Connecter Type | Contact Type | Model Name | 3D Download | 2D Download |
Dummy stowage receptacle | 22-12 | Pin contact | ZC3115 22-12P | ||
Dummy stowage receptacle | 22-19 | Pin contact | ZC3115 22-19P | ||
Dummy stowage receptacle | 22-21 | Pin contact | ZC3115 22-21P | ||
Dummy stowage receptacle | 22-32 | Pin contact | ZC3115 22-32P | ||
| Dummy stowage receptacle | 22-34 | Pin contact | ZC3115 22-34P | ||
| Dummy stowage receptacle | 22-41 | Pin contact | ZC3115 22-41P | ||
| Dummy stowage receptacle | 22-55 | Pin contact | ZC3115 22-55P | ||
| Dummy stowage receptacle | 22-95 | Pin contact | ZC3115 22-95P | ||
| Dummy stowage receptacle | 22-96 | Pin contact | ZC3115 22-96P | ||
Dummy stowage receptacle | 22-12 | Socket contact | ZC3115 22-12S | ||
Dummy stowage receptacle | 22-19 | Socket contact | ZC3115 22-19S | ||
Dummy stowage receptacle | 22-21 | Socket contact | ZC3115 22-21S | ||
Dummy stowage receptacle | 22-32 | Socket contact | ZC3115 22-32S | ||
| Dummy stowage receptacle | 22-34 | Socket contact | ZC3115 22-34S | ||
| Dummy stowage receptacle | 22-41 | Socket contact | ZC3115 22-41S | ||
| Dummy stowage receptacle | 22-55 | Socket contact | ZC3115 22-55S | ||
| Dummy stowage receptacle | 22-95 | Socket contact | ZC3115 22-95S | ||
| Dummy stowage receptacle | 22-96 | Socket contact | ZC3115 22-96S |
Note: Please consult customer service.
Related Album | |
Related Album | |
Related Album |

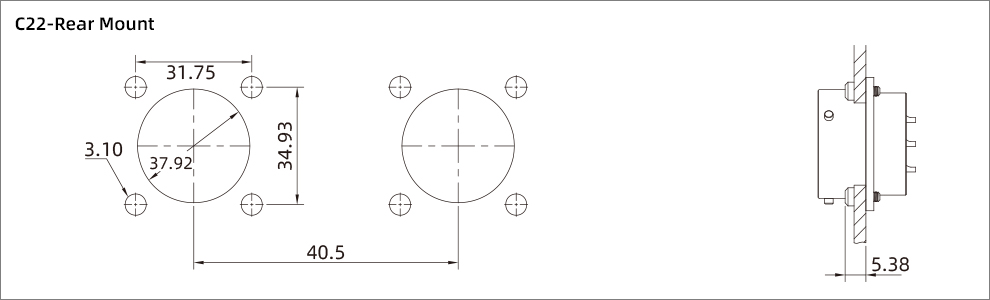

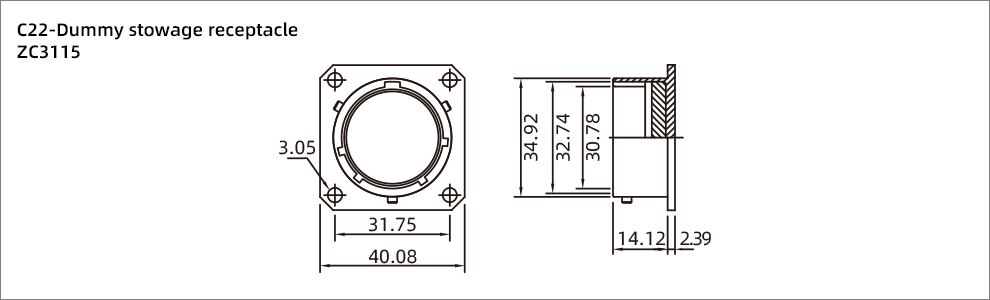

C22-DIMENSIONAL DRAWING
